Scene Index that resolves materialBindings that have multiple purposes into a single purpose. More...

#include <materialBindingResolvingSceneIndex.h>

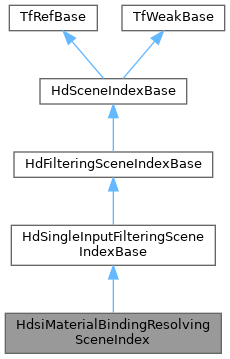

Inheritance diagram for HdsiMaterialBindingResolvingSceneIndex:

Public Member Functions
HDSI_API HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const override
	Returns a pair of (prim type, datasource) for the object at `primPath`.

HDSI_API SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const override
	Returns the paths of all scene index prims located immediately below `primPath`.

Public Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API std::vector< HdSceneIndexBaseRefPtr >	GetInputScenes () const final

virtual std::vector< HdSceneIndexBaseRefPtr >	GetInputScenes () const =0

Public Member Functions inherited from HdSceneIndexBase
HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)
	Adds an observer to this scene index.

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)
	Removes an observer from this scene index; the given observer will no longer be forwarded notices.

virtual HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const =0
	Returns a pair of (prim type, datasource) for the object at `primPath`.

virtual SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const =0
	Returns the paths of all scene index prims located immediately below `primPath`.

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const
	A convenience function: look up the object at `primPath`, and if successful return the datasource at `locator` within that prim.

HD_API void	SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)
	Sends a message with optional arguments to this and any upstream input scene indices.

HD_API std::string	GetDisplayName () const
	Returns a value previously set by SetDisplayName.

HD_API void	SetDisplayName (const std::string &n)
	Allows for scene index instances to be identified in a more contextually relevant way.

HD_API void	AddTag (const TfToken &tag)
	Adds a specified tag token to a scene index instance.

HD_API void	RemoveTag (const TfToken &tag)
	Removes a specified tag token to a scene index instance.

HD_API bool	HasTag (const TfToken &tag) const
	Returns true if a specified tag token has been added to a scene index instance.

HD_API TfTokenVector	GetTags () const
	Returns all tag tokens currently added to a scene index instance.

Public Member Functions inherited from TfRefBase
	TfRefBase (TfRefBase const &)

TfRefBase &	operator= (TfRefBase const &)

size_t	GetCurrentCount () const
	Return the current reference count of this object.

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object.

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static HDSI_API HdsiMaterialBindingResolvingSceneIndexRefPtr	New (const HdSceneIndexBaseRefPtr &inputSceneIndex, const TfTokenVector &purposePriorityOrder, const TfToken &dstPurpose)

Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Protected Member Functions
void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries) override

void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries) override

void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries) override

	HdsiMaterialBindingResolvingSceneIndex (const HdSceneIndexBaseRefPtr &inputSceneIndex, const TfTokenVector &purposePriorityOrder, const TfToken &dstPurpose)

Protected Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API	HdSingleInputFilteringSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex)

virtual void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries)=0

virtual void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries)=0

virtual void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries)=0

virtual HD_API void	_PrimsRenamed (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &entries)

const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const
	Returns the input scene.

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)
	Notify attached observers of prims added to the scene.

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)
	Notify attached observers of prims removed from the scene.

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)
	Notify attached observers of datasource invalidations from the scene.

HD_API void	_SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)
	Notify attached observers of prims (and their descendents) which have been renamed or reparented.

HD_API bool	_IsObserved () const
	Returns whether the scene index has any registered observers; this information can be used to skip work preparing notices when there are no observers.

virtual HD_API void	_SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)
	Implement in order to react directly to system messages sent from downstream.

Protected Member Functions inherited from TfWeakBase
TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Additional Inherited Members
Public Types inherited from TfRefBase
typedef void(*	UniqueChangedFuncPtr) (TfRefBase const *, bool)

Detailed Description

Scene Index that resolves materialBindings that have multiple purposes into a single purpose.

The first binding encountered in purposePriorityOrder will be provided as dstPurpose.

Definition at line 21 of file materialBindingResolvingSceneIndex.h.

Member Function Documentation

◆ _PrimsAdded()

void _PrimsAdded	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::AddedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

◆ _PrimsDirtied()

void _PrimsDirtied	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::DirtiedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

◆ _PrimsRemoved()

void _PrimsRemoved	(	const HdSceneIndexBase &	sender,
		const HdSceneIndexObserver::RemovedPrimEntries &	entries
	)

overrideprotectedvirtual

Implements HdSingleInputFilteringSceneIndexBase.

◆ GetChildPrimPaths()

HDSI_API SdfPathVector GetChildPrimPaths ( const SdfPath & primPath ) const

overridevirtual

Returns the paths of all scene index prims located immediately below primPath.

This function can be used to traverse the scene by recursing from SdfPath::AbsoluteRootPath(); such a traversal is expected to give the same set of prims as the flattening of the scene index's PrimsAdded and PrimsRemoved messages. This function is expected to be threadsafe.

Implements HdSceneIndexBase.
