Executes a VdfNetwork to compute a requested set of values. More...

#include <pageCacheBasedExecutor.h>

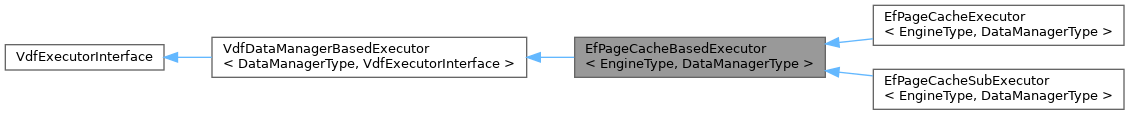

Inheritance diagram for EfPageCacheBasedExecutor< EngineType, DataManagerType >:

Public Member Functions
	EfPageCacheBasedExecutor (EfPageCacheStorage *cacheStorage)
	Constructor.

virtual	~EfPageCacheBasedExecutor ()
	Destructor.

virtual void	SetOutputValue (const VdfOutput &output, const VdfVector &value, const VdfMask &mask) override
	Set an output value.

void	WillDeleteNode (const VdfNode &node)
	Removes any internal references to `node` upon deleting the node from the VdfNetwork.

Public Member Functions inherited from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >
	VdfDataManagerBasedExecutor ()
	Default constructor.

	VdfDataManagerBasedExecutor (const VdfExecutorInterface *parentExecutor)
	Construct with a parent executor.

virtual	~VdfDataManagerBasedExecutor ()
	Destructor.

virtual void	Resize (const VdfNetwork &network) override
	Resize the executor data manager to accommodate the given `network`.

virtual void	SetOutputValue (const VdfOutput &output, const VdfVector &value, const VdfMask &mask) override
	Sets the cached value for a given `output`.

virtual bool	TakeOutputValue (const VdfOutput &output, VdfVector *value, const VdfMask &mask) override
	Transfers the `value` to the given `output`.

virtual void	DuplicateOutputData (const VdfOutput &sourceOutput, const VdfOutput &destOutput) override
	Duplicates the output data associated with `sourceOutput` and copies it to `destOutput`.

virtual bool	IsEmpty () const override
	Returns `true` of the data manager is empty.

virtual bool	HasInvalidationTimestampMismatch (const VdfOutput &source, const VdfOutput &dest) const override
	Returns `true`, if the invalidation timestamps between the `source` and `dest` outputs do not match, i.e.

Public Member Functions inherited from VdfExecutorInterface
	VdfExecutorInterface (const VdfExecutorInterface &)=delete
	Noncopyable.

VdfExecutorInterface &	operator= (const VdfExecutorInterface &)=delete

virtual VDF_API	~VdfExecutorInterface ()
	Destructor.

VDF_API void	Run (const VdfSchedule &schedule, VdfExecutorErrorLogger *errorLogger=NULL)
	Executes the `schedule`.

VDF_API void	Run (const VdfSchedule &schedule, const VdfRequest &computeRequest, VdfExecutorErrorLogger *errorLogger=NULL)
	Executes the `schedule`.

virtual const VdfExecutorFactoryBase &	GetFactory () const =0
	Returns a factory class facilitating the construction of new executors that share traits with this executor instance.

VDF_API void	RegisterObserver (const VdfExecutorObserver *observer) const
	Can be called by clients to register a VdfExecutorObserver with this executor.

VDF_API void	UnregisterObserver (const VdfExecutorObserver *observer) const
	Must be called by clients to unregister a VdfExecutorObserver, which has been previously registered with RegisterObserver().

const VdfVector *	GetOutputValue (const VdfOutput &output, const VdfMask &mask) const
	Returns the cached value for a given `output` if it has a cache that contains all values specified by `mask`.

const VdfExecutorInterface *	GetParentExecutor () const
	Returns the parent executor, if any.

VDF_API void	SetParentExecutor (const VdfExecutorInterface *parentExecutor)
	Sets the parent executor.

VDF_API void	InvalidateValues (const VdfMaskedOutputVector &invalidationRequest)
	Invalidates the network, starting from the masked outputs in `request`.

VDF_API void	InvalidateTopologicalState ()
	Invalidate all state depending on network topology.

VDF_API void	ClearData ()
	Clears the executors buffers.

VDF_API void	ClearDataForOutput (const VdfId outputId, const VdfId nodeId)
	Clears the executor buffers for a specific output.

void	IncrementExecutorInvalidationTimestamp ()
	Increment this executor's invalidation timestamp for mung buffer locking.

void	InheritExecutorInvalidationTimestamp (const VdfExecutorInterface &executor)
	Inherit the invalidation timestamp from another executor.

VdfInvalidationTimestamp	GetExecutorInvalidationTimestamp () const
	Returns this executor's invalidation timestamp.

void	SetInterruptionFlag (const std::atomic_bool *interruptionFlag)
	Set the interruption flag.

const std::atomic_bool *	GetInterruptionFlag () const
	Returns the interruption flag.

bool	HasBeenInterrupted () const
	Returns whether or not the executor has been interrupted, if the executor supports interruption.

void	SetExecutionStats (VdfExecutionStats *stats)
	Sets an execution stats object.

VdfExecutionStats *	GetExecutionStats () const
	Returns the Execution Stats object, if any.

Protected Member Functions
virtual const VdfVector *	_GetInputValue (const VdfConnection &connection, const VdfMask &mask) const override
	Returns value for the cache that flows across `connection`.

virtual const VdfVector *	_GetOutputValueForReading (const VdfOutput &output, const VdfMask &mask) const override
	Returns an output value for reading.

virtual void	_ClearData () override
	Virtual implementation of the ClearData call.

Protected Member Functions inherited from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >
virtual const VdfVector *	_GetInputValue (const VdfConnection &connection, const VdfMask &mask) const override
	Returns value for the cache that flows across `connection`.

virtual const VdfVector *	_GetOutputValueForReading (const VdfOutput &output, const VdfMask &mask) const override
	Returns an output value for reading.

virtual VdfVector *	_GetOutputValueForWriting (const VdfOutput &output) const override
	Returns an output value for writing.

void	_ClearDataForOutput (const VdfId outputId, const VdfId nodeId) override
	Clears the data for a specific output on this executor.

virtual bool	_IsOutputInvalid (const VdfId outputId, const VdfMask &invalidationMask) const override
	Returns `true` if the output is already invalid for the given `invalidationMask`.

virtual bool	_InvalidateOutput (const VdfOutput &output, const VdfMask &invalidationMask) override
	Called during invalidation to mark outputs as invalid and determine when the traversal can terminate early.

virtual void	_UpdateInvalidationTimestamp () override
	Called before invalidation begins to update the timestamp that will be written for every VdfOutput visited during invalidation.

virtual void	_SetReferenceOutputValue (const VdfOutput &destOutput, const VdfOutput &sourceOutput, const VdfMask &sourceMask) const override
	Called to set destOutput's buffer output to be a reference to the buffer output of sourceOutput.

virtual void	_TouchOutput (const VdfOutput &output) const override
	Mark the output as having been visited.

Protected Member Functions inherited from VdfExecutorInterface
VDF_API	VdfExecutorInterface ()
	Protected default constructor.

VDF_API	VdfExecutorInterface (const VdfExecutorInterface *parentExecutor)
	Construct with a parent executor.

virtual void	_Run (const VdfSchedule &schedule, const VdfRequest &computeRequest, VdfExecutorErrorLogger *errorLogger)=0
	Run this executor with the given `schedule` and `request`.

virtual const VdfVector *	_GetInputValue (const VdfConnection &connection, const VdfMask &mask) const =0
	Returns a value for the cache that flows across `connection`.

virtual const VdfVector *	_GetOutputValueForReading (const VdfOutput &output, const VdfMask &mask) const =0
	Returns an output value for reading.

virtual VdfVector *	_GetOutputValueForWriting (const VdfOutput &output) const =0
	Returns an output value for writing.

virtual bool	_IsOutputInvalid (const VdfId outputId, const VdfMask &invalidationMask) const =0
	Returns `true` if the output is already invalid for the given `invalidationMask`.

virtual bool	_InvalidateOutput (const VdfOutput &output, const VdfMask &invalidationMask)=0
	Called during invalidation to mark outputs as invalid and determine when the traversal can terminate early.

virtual bool	_PreProcessInvalidation (const VdfMaskedOutputVector &invalidationRequest, VdfMaskedOutputVector *processedRequest)
	This method is called as a pre-processing step before an InvalidateValues() call.

virtual void	_UpdateInvalidationTimestamp ()=0
	Called before invalidation begins to update the timestamp that will be written for every VdfOutput visited during invalidation.

virtual VDF_API void	_ClearData ()
	Virtual implementation of the ClearData call.

virtual VDF_API void	_ClearDataForOutput (const VdfId outputId, const VdfId nodeId)
	Virtual implementation of the ClearDataForOutput call.

virtual void	_SetReferenceOutputValue (const VdfOutput &destOutput, const VdfOutput &sourceOutput, const VdfMask &sourceMask) const =0
	Called to set destOutput's buffer output to be a reference to the buffer output of sourceOutput.

virtual void	_TouchOutput (const VdfOutput &output) const =0
	Mark the output as having been visited.

Additional Inherited Members
Protected Attributes inherited from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >
DataManagerType	_dataManager

Detailed Description

template<template< typename > class EngineType, typename DataManagerType>
class EfPageCacheBasedExecutor< EngineType, DataManagerType >

Executes a VdfNetwork to compute a requested set of values.

Caches the computed data in a EfPageCacheStorage container and recalls existing data using a page specified via the currently set value on the key output.

Definition at line 43 of file pageCacheBasedExecutor.h.

Constructor & Destructor Documentation

◆ EfPageCacheBasedExecutor()

EfPageCacheBasedExecutor ( EfPageCacheStorage * cacheStorage )

inline

Constructor.

Definition at line 53 of file pageCacheBasedExecutor.h.

◆ ~EfPageCacheBasedExecutor()

virtual ~EfPageCacheBasedExecutor ( )

inlinevirtual

Destructor.

Definition at line 65 of file pageCacheBasedExecutor.h.

Member Function Documentation

◆ _ClearData()

void _ClearData ( )

overrideprotectedvirtual

Virtual implementation of the ClearData call.

This may be overridden by classes, which derive from VdfExecutorInterface.

Reimplemented from VdfExecutorInterface.

Definition at line 409 of file pageCacheBasedExecutor.h.

◆ _GetInputValue()

const VdfVector * _GetInputValue	(	const VdfConnection &	connection,
		const VdfMask &	mask
	)		const

overrideprotectedvirtual

Returns value for the cache that flows across connection.

Reimplemented from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >.

Definition at line 175 of file pageCacheBasedExecutor.h.

◆ _GetOutputValueForReading()

const VdfVector * _GetOutputValueForReading	(	const VdfOutput &	output,
		const VdfMask &	mask
	)		const

overrideprotectedvirtual

Returns an output value for reading.

Reimplemented from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >.

Definition at line 195 of file pageCacheBasedExecutor.h.

◆ SetOutputValue()

void SetOutputValue	(	const VdfOutput &	output,
		const VdfVector &	value,
		const VdfMask &	mask
	)

overridevirtual

Set an output value.

Changes the currently selected page in the page cache, if output is a key output in the EfPageCacheStorage container.

Reimplemented from VdfDataManagerBasedExecutor< DataManagerType, VdfExecutorInterface >.

Definition at line 147 of file pageCacheBasedExecutor.h.

◆ WillDeleteNode()

void WillDeleteNode ( const VdfNode & node )

Removes any internal references to node upon deleting the node from the VdfNetwork.

Definition at line 166 of file pageCacheBasedExecutor.h.

The documentation for this class was generated from the following file:

pxr/exec/ef/pageCacheBasedExecutor.h
