An abstract base class for scene indices that evaluate path expressions against a scene. More...

#include <expressionEvaluatingSceneIndexBase.h>

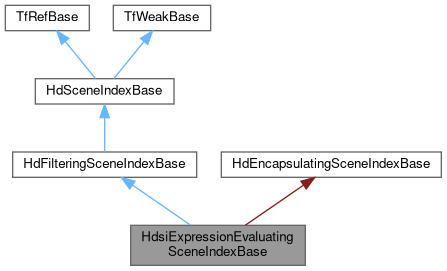

Inheritance diagram for HdsiExpressionEvaluatingSceneIndexBase:

Public Types
using	OptionalAddedEntries

using	OptionalRemovedEntries

using	OptionalDirtiedEntries

Public Types inherited from TfRefBase
typedef void(*)	UniqueChangedFuncPtr(TfRefBase const *, bool)

Public Member Functions
HDSI_API std::vector< HdSceneIndexBaseRefPtr >	GetInputScenes () const final
	Returns {_inputSceneIndex}.

HDSI_API std::vector< HdSceneIndexBaseRefPtr >	GetEncapsulatedScenes () const override
	Returns {_proxyViewSceneIndex}.

HDSI_API HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const final
	Delegates to the input scene index, then calls _ModifyPrim.

HDSI_API SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const final
	Delegates to the input scene index, then calls _FilterChildPrimPaths.

Public Member Functions inherited from HdFilteringSceneIndexBase
Public Member Functions inherited from HdSceneIndexBase
HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)
	Adds an observer to this scene index.

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)
	Removes an observer from this scene index; the given observer will no longer be forwarded notices.

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const
	A convenience function: look up the object at primPath, and if successful return the datasource at locator within that prim.

HD_API void	SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)
	Sends a message with optional arguments to this and any upstream input scene indices.

HD_API std::string	GetDisplayName () const
	Returns a value previously set by SetDisplayName.

HD_API void	SetDisplayName (const std::string &n)
	Allows for scene index instances to be identified in a more contextually relevant way.

HD_API void	AddTag (const TfToken &tag)
	Adds a specified tag token to a scene index instance.

HD_API void	RemoveTag (const TfToken &tag)
	Removes a specified tag token to a scene index instance.

HD_API bool	HasTag (const TfToken &tag) const
	Returns true if a specified tag token has been added to a scene index instance.

HD_API TfTokenVector	GetTags () const
	Returns all tag tokens currently added to a scene index instance.

Public Member Functions inherited from TfRefBase
	TfRefBase (TfRefBase const &)

TfRefBase &	operator= (TfRefBase const &)

size_t	GetCurrentCount () const
	Return the current reference count of this object.

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object.

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Protected Member Functions
HDSI_API	HdsiExpressionEvaluatingSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex, const HdCollectionPredicateLibrary &predicateLibrary)
	Constructor takes an input scene index and a predicate library.

virtual HDSI_API void	_ModifyPrim (const SdfPath &primPath, HdSceneIndexPrim *prim) const
	Called by GetPrim after querying the input scene index.

virtual HDSI_API void	_FilterChildPrimPaths (const SdfPath &primPath, SdfPathVector *children) const
	Called by GetChildPrimPaths after querying the input scene index.

virtual HDSI_API bool	_IsPruned (const SdfPath &primPath) const
	Override to bail early from GetPrim and GetChildPrimPaths for pruned prims.

virtual NoticeProcessingResult	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &inputEntries)=0

virtual NoticeProcessingResult	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &inputEntries)=0

virtual NoticeProcessingResult	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &inputEntries)=0

virtual NoticeProcessingResult	_PrimsRenamed (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RenamedPrimEntries &inputEntries)

HDSI_API HdInstancingAwareCollectionExpressionEvaluator	_MakeEvaluator (const SdfPathExpression &pathExpr) const
	Constructs an HdInstancingAwareCollectionExpressionEvaluator for the given `pathExpr` using the predicate library provided to the constructor.

HDSI_API SdfPathVector	GetInstancerPrimPaths (const SdfPathSet &outermostInstancePaths) const
	Given a set of outermost instance prim paths (e.g.

HDSI_API const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const
	Returns the input scene index.

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)
	Notify attached observers of prims added to the scene.

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)
	Notify attached observers of prims removed from the scene.

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)
	Notify attached observers of datasource invalidations from the scene.

HD_API void	_SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)
	Notify attached observers of prims (and their descendents) which have been renamed or reparented.

HD_API bool	_IsObserved () const
	Returns whether the scene index has any registered observers; this information can be used to skip work preparing notices when there are no observers.

virtual HD_API void	_SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)
	Implement in order to react directly to system messages sent from downstream.

Protected Member Functions inherited from TfRefBase
Protected Member Functions inherited from TfWeakBase
TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Friends
class	_Observer

Additional Inherited Members
Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Detailed Description

An abstract base class for scene indices that evaluate path expressions against a scene.

Derived classes implement the _OnPrimsAdded, _OnPrimsRemoved, and _OnPrimsDirtied hooks to react to scene changes. Each hook receives the incoming entries and returns a NoticeProcessingResult that bundles optional added, removed, and dirtied entries, and indicates whether to forward the incoming notices (possibly saving a copy) as-is to downstream observers.

GetPrim and GetChildPrimPaths are final. Derived classes customize them by overriding _ModifyPrim and _FilterChildPrimPaths respectively. Because pruning is a common use case for scene indices that evaluate path expressions, derived classes can also override _IsPruned to bail early from GetPrim and GetChildPrimPaths for pruned prims.

Definition at line 50 of file expressionEvaluatingSceneIndexBase.h.

Member Typedef Documentation

◆ OptionalAddedEntries

using OptionalAddedEntries

Initial value:

std::optional<HdSceneIndexObserver::AddedPrimEntries>

Definition at line 115 of file expressionEvaluatingSceneIndexBase.h.

◆ OptionalDirtiedEntries

using OptionalDirtiedEntries

Initial value:

std::optional<HdSceneIndexObserver::DirtiedPrimEntries>

Definition at line 119 of file expressionEvaluatingSceneIndexBase.h.

◆ OptionalRemovedEntries

using OptionalRemovedEntries

Initial value:

std::optional<HdSceneIndexObserver::RemovedPrimEntries>

Definition at line 117 of file expressionEvaluatingSceneIndexBase.h.

Constructor & Destructor Documentation

◆ HdsiExpressionEvaluatingSceneIndexBase()

HDSI_API HdsiExpressionEvaluatingSceneIndexBase	(	const HdSceneIndexBaseRefPtr &	inputSceneIndex,
		const HdCollectionPredicateLibrary &	predicateLibrary )

explicitprotected

Constructor takes an input scene index and a predicate library.

The predicate library is used in _MakeEvaluator.

Member Function Documentation

◆ _FilterChildPrimPaths()

virtual HDSI_API void _FilterChildPrimPaths	(	const SdfPath &	primPath,
		SdfPathVector *	children ) const

protectedvirtual

Called by GetChildPrimPaths after querying the input scene index.

Override to filter the returned children. The default implementation returns the input children unmodified.

◆ _GetInputSceneIndex()

HDSI_API const HdSceneIndexBaseRefPtr & _GetInputSceneIndex ( ) const

protected

Returns the input scene index.

◆ _IsPruned()

virtual HDSI_API bool _IsPruned ( const SdfPath & primPath ) const

protectedvirtual

Override to bail early from GetPrim and GetChildPrimPaths for pruned prims.

The default implementation returns false for all prims.

◆ _MakeEvaluator()

HDSI_API HdInstancingAwareCollectionExpressionEvaluator _MakeEvaluator ( const SdfPathExpression & pathExpr ) const

protected

Constructs an HdInstancingAwareCollectionExpressionEvaluator for the given pathExpr using the predicate library provided to the constructor.

◆ _ModifyPrim()

virtual HDSI_API void _ModifyPrim	(	const SdfPath &	primPath,
		HdSceneIndexPrim *	prim ) const

protectedvirtual

Called by GetPrim after querying the input scene index.

Override to modify or augment the returned prim. The default implementation returns the input prim unmodified.

◆ GetChildPrimPaths()

HDSI_API SdfPathVector GetChildPrimPaths ( const SdfPath & primPath ) const

finalvirtual

Delegates to the input scene index, then calls _FilterChildPrimPaths.

Implements HdSceneIndexBase.

◆ GetEncapsulatedScenes()

HDSI_API std::vector< HdSceneIndexBaseRefPtr > GetEncapsulatedScenes ( ) const

overridevirtual

Returns {_proxyViewSceneIndex}.

Implements HdEncapsulatingSceneIndexBase.

◆ GetInputScenes()

HDSI_API std::vector< HdSceneIndexBaseRefPtr > GetInputScenes ( ) const

finalvirtual

Returns {_inputSceneIndex}.

Implements HdFilteringSceneIndexBase.

◆ GetInstancerPrimPaths()

HDSI_API SdfPathVector GetInstancerPrimPaths ( const SdfPathSet & outermostInstancePaths ) const

protected

Given a set of outermost instance prim paths (e.g.

from HdInstancingAwareCollectionExpressionEvaluator::MatchResult:: fullyMatchedInstances), returns the corresponding instancer prim paths as a vector (1:1 mapping). An empty SdfPath is returned for any input path that isn't an outermost instance (as tracked by the internal HdInstanceProxyViewSceneIndex).

◆ GetPrim()

HDSI_API HdSceneIndexPrim GetPrim ( const SdfPath & primPath ) const

finalvirtual

Delegates to the input scene index, then calls _ModifyPrim.

Implements HdSceneIndexBase.

Friends And Related Symbol Documentation

◆ _Observer

friend class _Observer

friend

Definition at line 207 of file expressionEvaluatingSceneIndexBase.h.

The documentation for this class was generated from the following file:

pxr/imaging/hdsi/expressionEvaluatingSceneIndexBase.h
