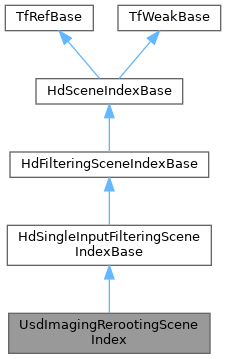

Inheritance diagram for UsdImagingRerootingSceneIndex:

Public Member Functions
USDIMAGING_API HdSceneIndexPrim	GetPrim (const SdfPath &primPath) const override
	Returns a pair of (prim type, datasource) for the object at `primPath`. More...

USDIMAGING_API SdfPathVector	GetChildPrimPaths (const SdfPath &primPath) const override
	Returns the paths of all scene index prims located immediately below `primPath`. More...

Public Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API std::vector< HdSceneIndexBaseRefPtr >	GetInputScenes () const final

Public Member Functions inherited from HdSceneIndexBase
HD_API void	AddObserver (const HdSceneIndexObserverPtr &observer)
	Adds an observer to this scene index. More...

HD_API void	RemoveObserver (const HdSceneIndexObserverPtr &observer)
	Removes an observer from this scene index; the given observer will no longer be forwarded notices. More...

HdDataSourceBaseHandle	GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const
	A convenience function: look up the object at `primPath`, and if successful return the datasource at `locator` within that prim. More...

Public Member Functions inherited from TfRefBase
size_t	GetCurrentCount () const
	Return the current reference count of this object. More...

bool	IsUnique () const
	Return true if only one `TfRefPtr` points to this object. More...

const TfRefCount &	GetRefCount () const

void	SetShouldInvokeUniqueChangedListener (bool shouldCall)

Public Member Functions inherited from TfWeakBase
	TfWeakBase (const TfWeakBase &)

const TfWeakBase &	__GetTfWeakBase__ () const

const TfWeakBase &	operator= (const TfWeakBase &)

void	EnableNotification2 () const

TF_API void const *	GetUniqueIdentifier () const

Static Public Member Functions
static UsdImagingRerootingSceneIndexRefPtr	New (HdSceneIndexBaseRefPtr const &inputScene, const SdfPath &srcPrefix, const SdfPath &dstPrefix)

Static Public Member Functions inherited from TfRefBase
static TF_API void	SetUniqueChangedListener (UniqueChangedListener listener)

Protected Member Functions
USDIMAGING_API	UsdImagingRerootingSceneIndex (HdSceneIndexBaseRefPtr const &inputScene, const SdfPath &srcPrefix, const SdfPath &dstPrefix)

void	_PrimsAdded (const HdSceneIndexBase &sender, const HdSceneIndexObserver::AddedPrimEntries &entries) override

void	_PrimsRemoved (const HdSceneIndexBase &sender, const HdSceneIndexObserver::RemovedPrimEntries &entries) override

void	_PrimsDirtied (const HdSceneIndexBase &sender, const HdSceneIndexObserver::DirtiedPrimEntries &entries) override

Protected Member Functions inherited from HdSingleInputFilteringSceneIndexBase
HD_API	HdSingleInputFilteringSceneIndexBase (const HdSceneIndexBaseRefPtr &inputSceneIndex)

const HdSceneIndexBaseRefPtr &	_GetInputSceneIndex () const
	Returns the input scene. More...

Protected Member Functions inherited from HdSceneIndexBase
HD_API void	_SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)
	Notify attached observers of prims added to the scene. More...

HD_API void	_SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)
	Notify attached observers of prims removed from the scene. More...

HD_API void	_SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)
	Notify attached observers of datasource invalidations from the scene. More...

HD_API bool	_IsObserved () const
	Returns whether the scene index has any registered observers; this information can be used to skip work preparing notices when there are no observers. More...

Protected Member Functions inherited from TfWeakBase
TfRefPtr< Tf_Remnant >	_Register () const

template<class T >
TfRefPtr< Tf_Remnant >	_Register (T *tempRmnt) const

bool	_HasRemnant () const

Additional Inherited Members
Public Types inherited from TfRefBase
typedef void(*	UniqueChangedFuncPtr) (TfRefBase const *, bool)

Detailed Description

UsdImagingRerootingSceneIndex.

Drops all prims not under srcPrefix and moves those under srcPrefix to dstPrefix.

Data sources containing paths will be updated accordingly. That is, if it contains a path with srcPrefix as prefix, the prefix will be replaced by dstPrefix.

Note that this can be used as prefixing scene index by setting srcPrefix to the root path. It can also use to isolate part of the namespace by setting the srcPrefix and dstPrefix to be equal.

Definition at line 48 of file rerootingSceneIndex.h.

Member Function Documentation

◆ GetChildPrimPaths()

USDIMAGING_API SdfPathVector GetChildPrimPaths ( const SdfPath & primPath ) const

overridevirtual

Returns the paths of all scene index prims located immediately below primPath.

This function can be used to traverse the scene by recursing from SdfPath::AbsoluteRootPath(); such a traversal is expected to give the same set of prims as the flattening of the scene index's PrimsAdded and PrimsRemoved messages. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

◆ GetPrim()

USDIMAGING_API HdSceneIndexPrim GetPrim ( const SdfPath & primPath ) const

overridevirtual

Returns a pair of (prim type, datasource) for the object at primPath.

If no such object exists, the type will be the empty token and the datasource will be null. This function is expected to be threadsafe.

Implements HdSceneIndexBase.

The documentation for this class was generated from the following file:

pxr/usdImaging/usdImaging/rerootingSceneIndex.h
