common.h File Reference

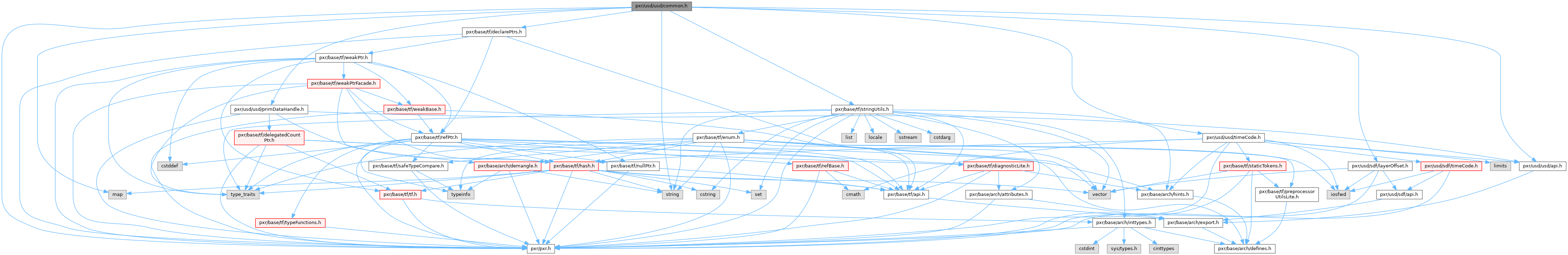

+ Include dependency graph for common.h:

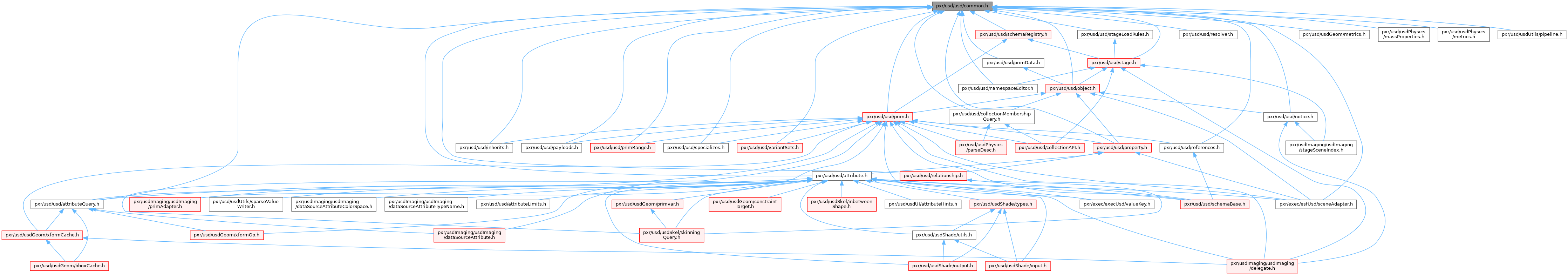

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs

typedef UsdStagePtr UsdStageWeakPtr

typedef std::map< class TfToken, VtValue, TfDictionaryLessThanUsdMetadataValueMap


Enumerations

enum  UsdListPosition { UsdListPositionFrontOfPrependList , UsdListPositionBackOfPrependList , UsdListPositionFrontOfAppendList , UsdListPositionBackOfAppendList }
 Specifies a position to add items to lists. More...

enum  UsdLoadPolicy { UsdLoadWithDescendants , UsdLoadWithoutDescendants }
 Controls UsdStage::Load() and UsdPrim::Load() behavior regarding whether or not descendant prims are loaded. More...

enum class  UsdSchemaKind {
  Invalid , AbstractBase , AbstractTyped , ConcreteTyped ,
  NonAppliedAPI , SingleApplyAPI , MultipleApplyAPI
}
 An enum representing which kind of schema a given schema class belongs to. More...


Functions

 TF_DECLARE_WEAK_AND_REF_PTRS (UsdStage)

USD_API std::string UsdDescribe (const UsdObject &)
 Return a human-readable description.

USD_API std::string UsdDescribe (const UsdStageRefPtr &)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

USD_API std::string UsdDescribe (const UsdStageWeakPtr &)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

USD_API std::string UsdDescribe (const UsdStage *)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

USD_API std::string UsdDescribe (const UsdStage &)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

USD_API std::string UsdDescribe (const UsdStageCache &)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.


Typedef Documentation

◆ UsdMetadataValueMap

typedef std::map<class TfToken, VtValue, TfDictionaryLessThan > UsdMetadataValueMap

Definition at line 81 of file common.h.

◆ UsdStageWeakPtr

typedef UsdStagePtr UsdStageWeakPtr

Definition at line 55 of file common.h.

Enumeration Type Documentation

◆ UsdListPosition

Specifies a position to add items to lists.

Used by some Add() methods in the USD API that manipulate lists, such as AddReference().

Enumerator
UsdListPositionFrontOfPrependList

The position at the front of the prepend list.

An item added at this position will, after composition is applied, be stronger than other items prepended in this layer, and stronger than items added by weaker layers.

UsdListPositionBackOfPrependList

The position at the back of the prepend list.

An item added at this position will, after composition is applied, be weaker than other items prepended in this layer, but stronger than items added by weaker layers.

UsdListPositionFrontOfAppendList

The position at the front of the append list.

An item added at this position will, after composition is applied, be stronger than other items appended in this layer, and stronger than items added by weaker layers.

UsdListPositionBackOfAppendList

The position at the back of the append list.

An item added at this position will, after composition is applied, be weaker than other items appended in this layer, but stronger than items added by weaker layers.

Definition at line 88 of file common.h.

◆ UsdLoadPolicy

Controls UsdStage::Load() and UsdPrim::Load() behavior regarding whether or not descendant prims are loaded.

Enumerator
UsdLoadWithDescendants

Load a prim plus all its descendants.

UsdLoadWithoutDescendants

Load a prim by itself with no descendants.

Definition at line 116 of file common.h.

◆ UsdSchemaKind

enum class UsdSchemaKind
strong

An enum representing which kind of schema a given schema class belongs to.

For more details on the different kinds of schemas, see Creating New Schema Classes with usdGenSchema.

Enumerator
Invalid

Invalid or unknown schema kind.

AbstractBase

Represents abstract or base schema types that are interface-only and cannot be instantiated.

These are reserved for core base classes known to the usdGenSchema system, so this should never be assigned to generated schema classes.

AbstractTyped

Represents a non-concrete typed schema.

ConcreteTyped

Represents a concrete typed schema.

NonAppliedAPI

Non-applied API schema.

SingleApplyAPI

Single Apply API schema.

MultipleApplyAPI

Multiple Apply API Schema.

Definition at line 129 of file common.h.

Function Documentation

◆ UsdDescribe() [1/6]

USD_API std::string UsdDescribe ( const UsdObject )

Return a human-readable description.

◆ UsdDescribe() [2/6]

USD_API std::string UsdDescribe ( const UsdStage )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ UsdDescribe() [3/6]

USD_API std::string UsdDescribe ( const UsdStage )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ UsdDescribe() [4/6]

USD_API std::string UsdDescribe ( const UsdStageCache )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ UsdDescribe() [5/6]

USD_API std::string UsdDescribe ( const UsdStageRefPtr &  )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ UsdDescribe() [6/6]

USD_API std::string UsdDescribe ( const UsdStageWeakPtr &  )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
