reduce.h File Reference

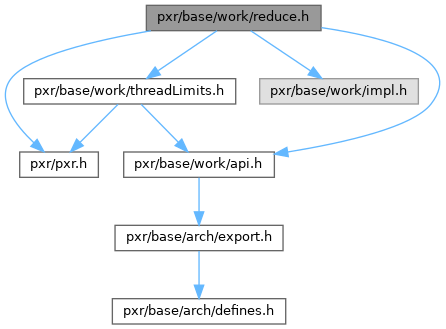

Include dependency graph for reduce.h:

Go to the source code of this file.

Functions
template<typename Fn , typename Rn , typename V >
V	WorkParallelReduceN (const V &identity, size_t n, Fn &&loopCallback, Rn &&reductionCallback, size_t grainSize)
	Recursively splits the range [0, n) into subranges, which are then reduced by invoking loopCallback in parallel.
template<typename Fn , typename Rn , typename V >
V	WorkParallelReduceN (const V &identity, size_t n, Fn &&loopCallback, Rn &&reductionCallback)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.This overload does not accept a grain size parameter and instead attempts to automatically deduce a grain size that is optimal for the current resource utilization and provided workload.

Function Documentation

WorkParallelReduceN() [1/2]

V WorkParallelReduceN	(	const V &	identity,
		size_t	n,
		Fn &&	loopCallback,
		Rn &&	reductionCallback
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.This overload does not accept a grain size parameter and instead attempts to automatically deduce a grain size that is optimal for the current resource utilization and provided workload.

Definition at line 115 of file reduce.h.

WorkParallelReduceN() [2/2]

V WorkParallelReduceN	(	const V &	identity,
		size_t	n,
		Fn &&	loopCallback,
		Rn &&	reductionCallback,
		size_t	grainSize
	)

Recursively splits the range [0, n) into subranges, which are then reduced by invoking loopCallback in parallel.

Each invocation of loopCallback returns a single value that is the result of joining the elements in the respective subrange. These values are then further joined using the binary operator reductionCallback, until only a single value remains. This single value is then the result of joining all elements over the entire range [0, n).

The loopCallback must be of the form:

V LoopCallback(size_t begin, size_t end, const V &identity);

The reductionCallback must be of the form:

V ReductionCallback(const V &lhs, const V &rhs);

For example, the following code reduces an array of mesh points into a single bounding box:

// Get the mesh points from which we are going to generate the bounding box.
const std::vector<Vector3> &points = GetMeshPoints();

// Generate the bounding box by parallel reducing the points.
BoundingBox bbox = WorkParallelReduceN(
    BoundingBox(),
    points.size(),
    [&points](size_t b, size_t e, const BoundingBox &identity){
        BoundingBox bbox(identity);

        // Insert each point in this subrange into the local bounding box.
        for (size_t i = b; i != e; ++i) {
            bbox.InsertPoint(points[i]);
        }

        // Return the local bounding box, which now encapsulates all the
        // points in this subrange.
        return bbox;
    },
    [](const BoundingBox &lhs, const BoundingBox &rhs){
        // Join two bounding boxes into a single bounding box. The
        // algorithm will apply this reduction step recursively until there
        // is only a single bounding box left.
        BoundingBox bbox(lhs);
        bbox.UnionWith(rhs);
        return bbox;
    }
);

grainSize specifies a minimum amount of work to be done per-thread. There is overhead to launching a task and a typical guideline is that you want to have at least 10,000 instructions to count for the overhead of launching that task.

Definition at line 80 of file reduce.h.
