Public Member Functions | Protected Member Functions | List of all members
EsfPropertyInterface Class Referenceabstract

Property abstraction for scene adapter implementations. More...

#include <property.h>

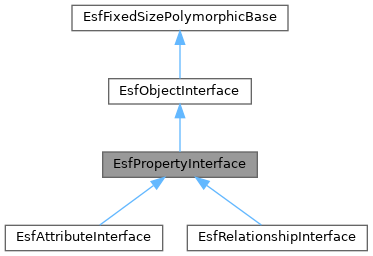

+ Inheritance diagram for EsfPropertyInterface:

Public Member Functions

ESF_API TfToken GetBaseName (EsfJournal *journal) const

ESF_API TfToken GetNamespace (EsfJournal *journal) const

- Public Member Functions inherited from EsfObjectInterface
ESF_API bool IsValid (EsfJournal *journal) const

ESF_API SdfPath GetPath (EsfJournal *journal) const

ESF_API TfToken GetName (EsfJournal *journal) const

ESF_API EsfPrim GetPrim (EsfJournal *journal) const

EsfStage GetStage () const

ESF_API EsfSchemaConfigKey GetSchemaConfigKey (EsfJournal *journal) const
 Returns an opaque value that is guaranteed to be unique and stable.

virtual bool IsPrim () const =0

virtual bool IsAttribute () const =0

virtual bool IsRelationship () const =0

virtual EsfObject AsObject () const =0

virtual EsfAttribute AsAttribute () const =0

virtual EsfRelationship AsRelationship () const =0

virtual EsfPrim AsPrim () const =0

ESF_API VtValue GetMetadata (const TfToken &key) const
 Returns the value of the metadata field indicated by key.

ESF_API bool IsValidMetadataKey (const TfToken &key) const
 Returns true if the field indicated by key is a valid metadata field for this object.

ESF_API TfType GetMetadataValueType (const TfToken &key) const
 Returns the value type for the indicated key.


Protected Member Functions

 EsfPropertyInterface (const SdfPath &path)
 This constructor may only be called by the scene adapter implementation.

- Protected Member Functions inherited from EsfObjectInterface
 EsfObjectInterface (const SdfPath &path)
 This constructor may only be called by the scene adapter implementation.

const SdfPath & _GetPath () const
 Gets the path to this object used for journaling.

virtual EsfStage _GetStage () const =0


Additional Inherited Members

- Static Protected Member Functions inherited from EsfObjectInterface
static EsfSchemaConfigKey CreateSchemaConfigKey (const void *const id)


Detailed Description

Property abstraction for scene adapter implementations.

The property abstraction closely resembles the read-only interface of UsdProperty.

The public methods of this class are called by the exec network compiler. Each method takes an argument of type EsfJournal* which captures the conditions for recompilation.

Definition at line 33 of file property.h.

Constructor & Destructor Documentation

◆ EsfPropertyInterface()

EsfPropertyInterface ( const SdfPath &  path)
inlineprotected

This constructor may only be called by the scene adapter implementation.

Definition at line 46 of file property.h.

Member Function Documentation

◆ GetBaseName()

ESF_API TfToken GetBaseName ( EsfJournal *  journal) const
See also
UsdProperty::GetBaseName

◆ GetNamespace()

ESF_API TfToken GetNamespace ( EsfJournal *  journal) const
See also
UsdProperty::GetNamespace
The documentation for this class was generated from the following file:
