HdFilteringSceneIndexBase Class Referenceabstract

An abstract base class for scene indexes that have one or more input scene indexes which serve as a basis for their own scene. More...

#include <filteringSceneIndex.h>

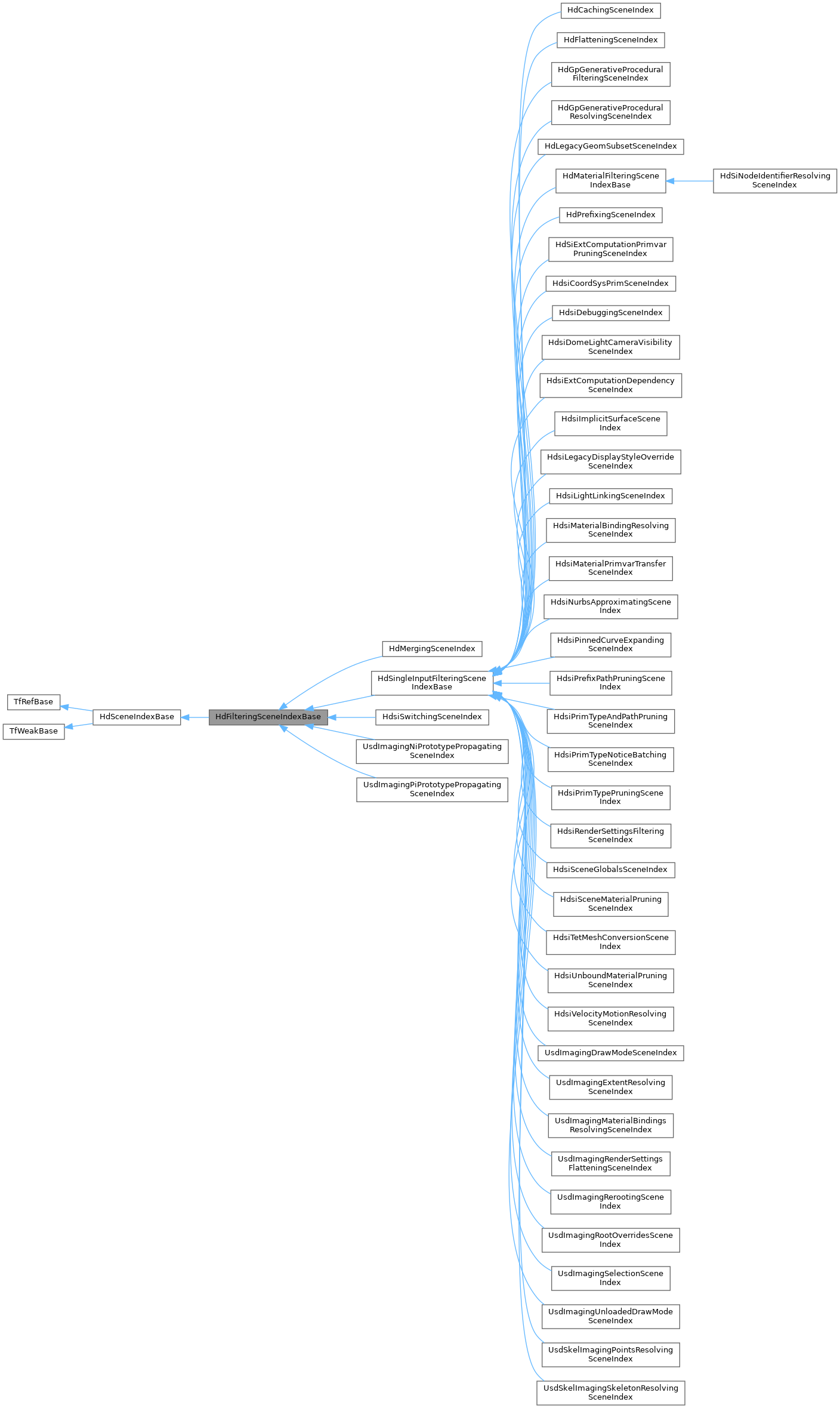

+ Inheritance diagram for HdFilteringSceneIndexBase:

Public Member Functions

virtual std::vector< HdSceneIndexBaseRefPtr > GetInputScenes () const =0

- Public Member Functions inherited from HdSceneIndexBase
HD_API void AddObserver (const HdSceneIndexObserverPtr &observer)
 Adds an observer to this scene index.

HD_API void RemoveObserver (const HdSceneIndexObserverPtr &observer)
 Removes an observer from this scene index; the given observer will no longer be forwarded notices.

virtual HdSceneIndexPrim GetPrim (const SdfPath &primPath) const =0
 Returns a pair of (prim type, datasource) for the object at primPath.

virtual SdfPathVector GetChildPrimPaths (const SdfPath &primPath) const =0
 Returns the paths of all scene index prims located immediately below primPath.

HdDataSourceBaseHandle GetDataSource (const SdfPath &primPath, const HdDataSourceLocator &locator) const
 A convenience function: look up the object at primPath, and if successful return the datasource at locator within that prim.

HD_API void SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)
 Sends a message with optional arguments to this and any upstream input scene indices.

HD_API std::string GetDisplayName () const
 Returns a value previously set by SetDisplayName.

HD_API void SetDisplayName (const std::string &n)
 Allows for scene index instances to be identified in a more contextually relevant way.

HD_API void AddTag (const TfToken &tag)
 Adds a specified tag token to a scene index instance.

HD_API void RemoveTag (const TfToken &tag)
 Removes a specified tag token to a scene index instance.

HD_API bool HasTag (const TfToken &tag) const
 Returns true if a specified tag token has been added to a scene index instance.

HD_API TfTokenVector GetTags () const
 Returns all tag tokens currently added to a scene index instance.

- Public Member Functions inherited from TfRefBase
 TfRefBase (TfRefBase const &)

TfRefBaseoperator= (TfRefBase const &)

size_t GetCurrentCount () const
 Return the current reference count of this object.

bool IsUnique () const
 Return true if only one TfRefPtr points to this object.

void SetShouldInvokeUniqueChangedListener (bool shouldCall)

- Public Member Functions inherited from TfWeakBase
 TfWeakBase (const TfWeakBase &)

const TfWeakBase__GetTfWeakBase__ () const

const TfWeakBaseoperator= (const TfWeakBase &)

void EnableNotification2 () const

TF_API void const * GetUniqueIdentifier () const


Additional Inherited Members

- Public Types inherited from TfRefBase
typedef void(* UniqueChangedFuncPtr) (TfRefBase const *, bool)

- Static Public Member Functions inherited from TfRefBase
static TF_API void SetUniqueChangedListener (UniqueChangedListener listener)

- Protected Member Functions inherited from HdSceneIndexBase
HD_API void _SendPrimsAdded (const HdSceneIndexObserver::AddedPrimEntries &entries)
 Notify attached observers of prims added to the scene.

HD_API void _SendPrimsRemoved (const HdSceneIndexObserver::RemovedPrimEntries &entries)
 Notify attached observers of prims removed from the scene.

HD_API void _SendPrimsDirtied (const HdSceneIndexObserver::DirtiedPrimEntries &entries)
 Notify attached observers of datasource invalidations from the scene.

HD_API void _SendPrimsRenamed (const HdSceneIndexObserver::RenamedPrimEntries &entries)
 Notify attached observers of prims (and their descendents) which have been renamed or reparented.

HD_API bool _IsObserved () const
 Returns whether the scene index has any registered observers; this information can be used to skip work preparing notices when there are no observers.

virtual HD_API void _SystemMessage (const TfToken &messageType, const HdDataSourceBaseHandle &args)
 Implement in order to react directly to system messages sent from downstream.

- Protected Member Functions inherited from TfWeakBase
TfRefPtr< Tf_Remnant > _Register () const

template<class T >
TfRefPtr< Tf_Remnant > _Register (T *tempRmnt) const

bool _HasRemnant () const


Detailed Description

An abstract base class for scene indexes that have one or more input scene indexes which serve as a basis for their own scene.

Definition at line 51 of file filteringSceneIndex.h.

Member Function Documentation

◆ GetInputScenes()

virtual std::vector< HdSceneIndexBaseRefPtr > GetInputScenes ( ) const
pure virtual

Implemented in HdMergingSceneIndex.


The documentation for this class was generated from the following file:
