The base class prim adapter for scene index support. More...

#include <sceneIndexPrimAdapter.h>

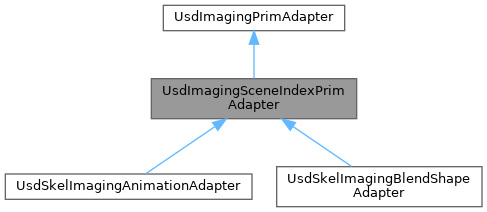

Inheritance diagram for UsdImagingSceneIndexPrimAdapter:

Public Types
using	BaseAdapter = UsdImagingPrimAdapter

Public Types inherited from UsdImagingPrimAdapter
enum	PopulationMode { RepresentsSelf , RepresentsSelfAndDescendents , RepresentedByAncestor }

Public Member Functions
Scene Index Support
TfTokenVector	GetImagingSubprims (UsdPrim const &prim) override=0

TfToken	GetImagingSubprimType (UsdPrim const &prim, TfToken const &subprim) override=0

HdContainerDataSourceHandle	GetImagingSubprimData (UsdPrim const &prim, TfToken const &subprim, const UsdImagingDataSourceStageGlobals &stageGlobals) override=0

HdDataSourceLocatorSet	InvalidateImagingSubprim (UsdPrim const &prim, TfToken const &subprim, TfTokenVector const &properties, UsdImagingPropertyInvalidationType invalidationType) override=0

Legacy
Implementation of deprecated pure-virtuals; these functions don't participate in the stage scene index.
USDIMAGING_API SdfPath	Populate (UsdPrim const &prim, UsdImagingIndexProxy index, UsdImagingInstancerContext const instancerContext=nullptr) override final
	Called to populate the RenderIndex for this UsdPrim.

USDIMAGING_API void	TrackVariability (UsdPrim const &prim, SdfPath const &cachePath, HdDirtyBits timeVaryingBits, UsdImagingInstancerContext const instancerContext=nullptr) const override final
	For the given `prim`, variability is detected and stored in `timeVaryingBits`.

USDIMAGING_API void	UpdateForTime (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, HdDirtyBits requestedBits, UsdImagingInstancerContext const *instancerContext=nullptr) const override final
	Populates the `cache` for the given `prim`, `time` and `requestedBits`.

USDIMAGING_API HdDirtyBits	ProcessPropertyChange (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &propertyName) override final
	Returns a bit mask of attributes to be updated, or HdChangeTracker::AllDirty if the entire prim must be resynchronized.

USDIMAGING_API void	MarkDirty (UsdPrim const &prim, SdfPath const &cachePath, HdDirtyBits dirty, UsdImagingIndexProxy *index) override final

USDIMAGING_API void	_RemovePrim (SdfPath const &cachePath, UsdImagingIndexProxy *index) override final

Public Member Functions inherited from UsdImagingPrimAdapter
virtual USDIMAGING_API HdDirtyBits	ProcessPrimChange (UsdPrim const &prim, SdfPath const &cachePath, TfTokenVector const &changedFields)
	Returns a bit mask of attributes to be updated, or HdChangeTracker::AllDirty if the entire prim must be resynchronized.

virtual USDIMAGING_API void	ProcessPrimResync (SdfPath const &cachePath, UsdImagingIndexProxy *index)
	When a PrimResync event occurs, the prim may have been deleted entirely, adapter plug-ins should override this method to free any per-prim state that was accumulated in the adapter.

virtual USDIMAGING_API void	ProcessPrimRemoval (SdfPath const &cachePath, UsdImagingIndexProxy *index)
	Removes all associated Rprims and dependencies from the render index without scheduling them for repopulation.

virtual USDIMAGING_API void	MarkRefineLevelDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkReprDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkCullStyleDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkRenderTagDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkTransformDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkVisibilityDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkMaterialDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkLightParamsDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkWindowPolicyDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	MarkCollectionsDirty (UsdPrim const &prim, SdfPath const &cachePath, UsdImagingIndexProxy *index)

virtual USDIMAGING_API void	InvokeComputation (SdfPath const &cachePath, HdExtComputationContext *context)

virtual USDIMAGING_API std::vector< VtArray< TfToken > >	GetInstanceCategories (UsdPrim const &prim)
	Return an array of the categories used by each instance.

virtual USDIMAGING_API GfMatrix4d	GetInstancerTransform (UsdPrim const &instancerPrim, SdfPath const &instancerPath, UsdTimeCode time) const
	Get the instancer transform for the given prim.

virtual USDIMAGING_API size_t	SampleInstancerTransform (UsdPrim const &instancerPrim, SdfPath const &instancerPath, UsdTimeCode time, size_t maxNumSamples, float sampleTimes, GfMatrix4d sampleValues)
	Sample the instancer transform for the given prim.

virtual USDIMAGING_API SdfPath	GetInstancerId (UsdPrim const &usdPrim, SdfPath const &cachePath) const
	Return the instancerId for this prim.

virtual USDIMAGING_API SdfPathVector	GetInstancerPrototypes (UsdPrim const &usdPrim, SdfPath const &cachePath) const
	Return the list of known prototypes of this prim.

virtual USDIMAGING_API size_t	SamplePrimvar (UsdPrim const &usdPrim, SdfPath const &cachePath, TfToken const &key, UsdTimeCode time, size_t maxNumSamples, float sampleTimes, VtValue sampleValues, VtIntArray *sampleIndices)
	Sample the primvar for the given prim.

virtual USDIMAGING_API PxOsdSubdivTags	GetSubdivTags (UsdPrim const &usdPrim, SdfPath const &cachePath, UsdTimeCode time) const
	Get the subdiv tags for this prim.

virtual USDIMAGING_API GfMatrix4d	GetRelativeInstancerTransform (SdfPath const &instancerPath, SdfPath const &protoInstancerPath, UsdTimeCode time) const
	Returns the transform of `protoInstancerPath` relative to `instancerPath`.

virtual USDIMAGING_API SdfPath	GetScenePrimPath (SdfPath const &cachePath, int instanceIndex, HdInstancerContext *instancerCtx) const

virtual USDIMAGING_API SdfPathVector	GetScenePrimPaths (SdfPath const &cachePath, std::vector< int > const &instanceIndices, std::vector< HdInstancerContext > *instancerCtxs) const

virtual USDIMAGING_API bool	PopulateSelection (HdSelection::HighlightMode const &highlightMode, SdfPath const &cachePath, UsdPrim const &usdPrim, int const hydraInstanceIndex, VtIntArray const &parentInstanceIndices, HdSelectionSharedPtr const &result) const

virtual USDIMAGING_API HdVolumeFieldDescriptorVector	GetVolumeFieldDescriptors (UsdPrim const &usdPrim, SdfPath const &id, UsdTimeCode time) const

virtual USDIMAGING_API VtValue	GetLightParamValue (const UsdPrim &prim, const SdfPath &cachePath, const TfToken &paramName, UsdTimeCode time) const

USDIMAGING_API GfMatrix4d	GetRootTransform () const
	The root transform provided by the delegate.

USDIMAGING_API void	SetDelegate (UsdImagingDelegate *delegate)
	A thread-local XformCache provided by the delegate.

virtual USDIMAGING_API bool	IsChildPath (const SdfPath &path) const

virtual USDIMAGING_API bool	GetVisible (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Returns true if the given prim is visible, taking into account inherited visibility values.

virtual USDIMAGING_API TfToken	GetPurpose (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &instanceInheritablePurpose) const
	Returns the purpose token for `prim`.

USDIMAGING_API TfToken	GetInheritablePurpose (UsdPrim const &prim) const
	Returns the purpose token for `prim`, but only if it is inheritable by child prims (i.e.

virtual USDIMAGING_API GfMatrix4d	GetTransform (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, bool ignoreRootTransform=false) const
	Fetches the transform for the given prim at the given time from a pre-computed cache of prim transforms.

virtual USDIMAGING_API size_t	SampleTransform (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time, size_t maxNumSamples, float sampleTimes, GfMatrix4d sampleValues)
	Samples the transform for the given prim.

virtual USDIMAGING_API VtValue	Get (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &key, UsdTimeCode time, VtIntArray *outIndices) const
	Gets the value of the parameter named key for the given prim (which has the given cache path) and given time.

virtual USDIMAGING_API HdCullStyle	GetCullStyle (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Gets the cullstyle of a specific path in the scene graph.

USDIMAGING_API SdfPath	GetMaterialUsdPath (UsdPrim const &prim) const
	Gets the material path for the given prim, walking up namespace if necessary.

USDIMAGING_API TfToken	GetModelDrawMode (UsdPrim const &prim)
	Gets the model:drawMode attribute for the given prim, walking up the namespace if necessary.

USDIMAGING_API HdModelDrawMode	GetFullModelDrawMode (UsdPrim const &prim)
	Gets the model draw mode object for the given prim, walking up the namespace if necessary.

USDIMAGING_API VtArray< VtIntArray >	GetPerPrototypeIndices (UsdPrim const &prim, UsdTimeCode time) const
	Computes the per-prototype instance indices for a UsdGeomPointInstancer.

virtual USDIMAGING_API VtValue	GetTopology (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Gets the topology object of a specific Usd prim.

virtual USDIMAGING_API GfRange3d	GetExtent (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Reads the extent from the given prim.

virtual USDIMAGING_API bool	GetDoubleSided (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const
	Reads double-sided from the given prim. If not authored, returns false.

virtual USDIMAGING_API SdfPath	GetMaterialId (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const

virtual USDIMAGING_API VtValue	GetMaterialResource (UsdPrim const &prim, SdfPath const &cachePath, UsdTimeCode time) const

virtual USDIMAGING_API const TfTokenVector &	GetExtComputationSceneInputNames (SdfPath const &cachePath) const

virtual USDIMAGING_API HdExtComputationInputDescriptorVector	GetExtComputationInputs (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API HdExtComputationOutputDescriptorVector	GetExtComputationOutputs (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API HdExtComputationPrimvarDescriptorVector	GetExtComputationPrimvars (UsdPrim const &prim, SdfPath const &cachePath, HdInterpolation interpolation, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API VtValue	GetExtComputationInput (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &name, UsdTimeCode time, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API size_t	SampleExtComputationInput (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &name, UsdTimeCode time, const UsdImagingInstancerContext instancerContext, size_t maxSampleCount, float sampleTimes, VtValue *sampleValues)

virtual USDIMAGING_API std::string	GetExtComputationKernel (UsdPrim const &prim, SdfPath const &cachePath, const UsdImagingInstancerContext *instancerContext) const

virtual USDIMAGING_API VtValue	GetInstanceIndices (UsdPrim const &instancerPrim, SdfPath const &instancerCachePath, SdfPath const &prototypeCachePath, UsdTimeCode time) const

virtual bool	IsSupported (UsdImagingIndexProxy const *index) const
	Returns true if the adapter can be populated into the target index.

virtual USDIMAGING_API PopulationMode	GetPopulationMode ()
	Returns the prim's behavior with regard to population and invalidation.

virtual USDIMAGING_API HdDataSourceLocatorSet	InvalidateImagingSubprimFromDescendent (UsdPrim const &prim, UsdPrim const &descendentPrim, TfToken const &subprim, TfTokenVector const &properties, UsdImagingPropertyInvalidationType invalidationType)
	This is called (for each result of GetImagingSubprims) when this adapter's GetScope() result is RepresentsSelfAndDescendents and USD properties have changed on a descendent prim whose adapter's GetScope() result is RepresentedByAncestor.

virtual USDIMAGING_API bool	ShouldCullChildren () const

virtual USDIMAGING_API bool	ShouldIgnoreNativeInstanceSubtrees () const

virtual USDIMAGING_API bool	IsInstancerAdapter () const

virtual USDIMAGING_API bool	CanPopulateUsdInstance () const

Additional Inherited Members
Static Public Member Functions inherited from UsdImagingPrimAdapter
static USDIMAGING_API UsdAttribute	LookupLightParamAttribute (UsdPrim const &prim, TfToken const &paramName)
	Provides to paramName->UsdAttribute value mappings.

static USDIMAGING_API bool	ShouldCullSubtree (UsdPrim const &prim)

Protected Types inherited from UsdImagingPrimAdapter
using	Keys = UsdImagingPrimvarDescCache::Key

Protected Member Functions inherited from UsdImagingPrimAdapter
virtual USDIMAGING_API SdfPath	ResolveCachePath (const SdfPath &usdPath, const UsdImagingInstancerContext *instancerContext=nullptr) const

template<typename T >
T	_Get (UsdPrim const &prim, TfToken const &attrToken, UsdTimeCode time) const

template<typename T >
void	_GetPtr (UsdPrim const &prim, TfToken const &key, UsdTimeCode time, T *out) const

USDIMAGING_API UsdImagingPrimvarDescCache *	_GetPrimvarDescCache () const

USDIMAGING_API UsdImaging_NonlinearSampleCountCache *	_GetNonlinearSampleCountCache () const

USDIMAGING_API UsdImaging_BlurScaleCache *	_GetBlurScaleCache () const

USDIMAGING_API UsdPrim	_GetPrim (SdfPath const &usdPath) const

USDIMAGING_API const UsdImagingPrimAdapterSharedPtr &	_GetPrimAdapter (UsdPrim const &prim, bool ignoreInstancing=false) const

USDIMAGING_API const UsdImagingPrimAdapterSharedPtr &	_GetAdapter (TfToken const &adapterKey) const

USDIMAGING_API SdfPath	_GetPrimPathFromInstancerChain (SdfPathVector const &instancerChain) const

USDIMAGING_API UsdTimeCode	_GetTimeWithOffset (float offset) const

USDIMAGING_API SdfPath	_ConvertCachePathToIndexPath (SdfPath const &cachePath) const

USDIMAGING_API SdfPath	_ConvertIndexPathToCachePath (SdfPath const &indexPath) const

USDIMAGING_API TfToken	_GetMaterialBindingPurpose () const

USDIMAGING_API TfTokenVector	_GetMaterialRenderContexts () const

USDIMAGING_API TfTokenVector	_GetRenderSettingsNamespaces () const

USDIMAGING_API bool	_GetSceneMaterialsEnabled () const
	Returns whether custom shading of prims is enabled.

USDIMAGING_API bool	_GetSceneLightsEnabled () const
	Returns whether lights found in the usdscene are enabled.

USDIMAGING_API bool	_IsPrimvarFilteringNeeded () const

USDIMAGING_API TfTokenVector	_GetShaderSourceTypes () const

USDIMAGING_API bool	_IsInInvisedPaths (SdfPath const &usdPath) const

USDIMAGING_API bool	_IsVarying (UsdPrim prim, TfToken const &attrName, HdDirtyBits dirtyFlag, TfToken const &perfToken, HdDirtyBits dirtyFlags, bool isInherited, bool exists=nullptr) const

USDIMAGING_API bool	_IsTransformVarying (UsdPrim prim, HdDirtyBits dirtyFlag, TfToken const &perfToken, HdDirtyBits *dirtyFlags) const

USDIMAGING_API void	_MergePrimvar (HdPrimvarDescriptorVector *vec, TfToken const &name, HdInterpolation interp, TfToken const &role=TfToken(), bool indexed=false) const

USDIMAGING_API void	_RemovePrimvar (HdPrimvarDescriptorVector *vec, TfToken const &name) const

USDIMAGING_API void	_ComputeAndMergePrimvar (UsdPrim const &prim, UsdGeomPrimvar const &primvar, UsdTimeCode time, HdPrimvarDescriptorVector primvarDescs, HdInterpolation interpOverride=nullptr) const

USDIMAGING_API HdDirtyBits	_ProcessNonPrefixedPrimvarPropertyChange (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &propertyName, TfToken const &primvarName, HdInterpolation const &primvarInterp, HdDirtyBits valueChangeDirtyBit=HdChangeTracker::DirtyPrimvar) const

USDIMAGING_API HdDirtyBits	_ProcessPrefixedPrimvarPropertyChange (UsdPrim const &prim, SdfPath const &cachePath, TfToken const &propertyName, HdDirtyBits valueChangeDirtyBit=HdChangeTracker::DirtyPrimvar, bool inherited=true) const

USDIMAGING_API void	_ResyncDependents (SdfPath const &usdPath, UsdImagingIndexProxy *index)

USDIMAGING_API UsdImaging_CollectionCache &	_GetCollectionCache () const

USDIMAGING_API UsdStageRefPtr	_GetStage () const

USDIMAGING_API UsdImaging_CoordSysBindingStrategy::value_type	_GetCoordSysBindings (UsdPrim const &prim) const

USDIMAGING_API UsdImaging_InheritedPrimvarStrategy::value_type	_GetInheritedPrimvars (UsdPrim const &prim) const

USDIMAGING_API UsdGeomPrimvar	_GetInheritedPrimvar (UsdPrim const &prim, TfToken const &primvarName) const

USDIMAGING_API GfInterval	_GetCurrentTimeSamplingInterval ()

USDIMAGING_API Usd_PrimFlagsConjunction	_GetDisplayPredicate () const

USDIMAGING_API Usd_PrimFlagsConjunction	_GetDisplayPredicateForPrototypes () const

USDIMAGING_API bool	_DoesDelegateSupportCoordSys () const

Static Protected Member Functions inherited from UsdImagingPrimAdapter
static USDIMAGING_API bool	_HasPrimvarsPrefix (TfToken const &propertyName)

Detailed Description

The base class prim adapter for scene index support.

Note that while the plugin system uses UsdImagingPrimAdapter, that class is overloaded with functionality for both UsdImagingStageSceneIndex and UsdImagingDelegate, and (e.g.) has a bunch of pure virtual functions that are only relevant to UsdImagingDelegate.

Pure scene index prim types should consider this the base class, and only use API defined here.

Definition at line 27 of file sceneIndexPrimAdapter.h.

Member Typedef Documentation

◆ BaseAdapter

using BaseAdapter = UsdImagingPrimAdapter

Definition at line 30 of file sceneIndexPrimAdapter.h.

Member Function Documentation

◆ _RemovePrim()

USDIMAGING_API void _RemovePrim	(	SdfPath const &	cachePath,
		UsdImagingIndexProxy *	index
	)

finaloverridevirtual

Implements UsdImagingPrimAdapter.

◆ GetImagingSubprimData()

HdContainerDataSourceHandle GetImagingSubprimData	(	UsdPrim const &	prim,
		TfToken const &	subprim,
		const UsdImagingDataSourceStageGlobals &	stageGlobals
	)

overridepure virtual

Reimplemented from UsdImagingPrimAdapter.

◆ GetImagingSubprims()

TfTokenVector GetImagingSubprims ( UsdPrim const & prim )

overridepure virtual

Reimplemented from UsdImagingPrimAdapter.

◆ GetImagingSubprimType()

TfToken GetImagingSubprimType	(	UsdPrim const &	prim,
		TfToken const &	subprim
	)

overridepure virtual

Reimplemented from UsdImagingPrimAdapter.

◆ InvalidateImagingSubprim()

HdDataSourceLocatorSet InvalidateImagingSubprim	(	UsdPrim const &	prim,
		TfToken const &	subprim,
		TfTokenVector const &	properties,
		UsdImagingPropertyInvalidationType	invalidationType
	)

overridepure virtual

Reimplemented from UsdImagingPrimAdapter.

◆ MarkDirty()

USDIMAGING_API void MarkDirty	(	UsdPrim const &	prim,
		SdfPath const &	cachePath,
		HdDirtyBits	dirty,
		UsdImagingIndexProxy *	index
	)

finaloverridevirtual

Implements UsdImagingPrimAdapter.

◆ Populate()

USDIMAGING_API SdfPath Populate	(	UsdPrim const &	prim,
		UsdImagingIndexProxy *	index,
		UsdImagingInstancerContext const *	instancerContext = `nullptr`
	)

finaloverridevirtual

Called to populate the RenderIndex for this UsdPrim.

The adapter is expected to create one or more prims in the render index using the given proxy.

Implements UsdImagingPrimAdapter.

◆ ProcessPropertyChange()

USDIMAGING_API HdDirtyBits ProcessPropertyChange	(	UsdPrim const &	prim,
		SdfPath const &	cachePath,
		TfToken const &	propertyName
	)

finaloverridevirtual

Returns a bit mask of attributes to be updated, or HdChangeTracker::AllDirty if the entire prim must be resynchronized.

Implements UsdImagingPrimAdapter.

◆ TrackVariability()

USDIMAGING_API void TrackVariability	(	UsdPrim const &	prim,
		SdfPath const &	cachePath,
		HdDirtyBits *	timeVaryingBits,
		UsdImagingInstancerContext const *	instancerContext = `nullptr`
	)		const

finaloverridevirtual

For the given prim, variability is detected and stored in timeVaryingBits.

Initial values are cached into the value cache.

This method is expected to be called from multiple threads.

Implements UsdImagingPrimAdapter.

◆ UpdateForTime()

USDIMAGING_API void UpdateForTime	(	UsdPrim const &	prim,
		SdfPath const &	cachePath,
		UsdTimeCode	time,
		HdDirtyBits	requestedBits,
		UsdImagingInstancerContext const *	instancerContext = `nullptr`
	)		const

finaloverridevirtual

Populates the cache for the given prim, time and requestedBits.

This method is expected to be called from multiple threads.

Implements UsdImagingPrimAdapter.

The documentation for this class was generated from the following file:

pxr/usdImaging/usdImaging/sceneIndexPrimAdapter.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BaseAdapter

Member Function Documentation

◆ _RemovePrim()

◆ GetImagingSubprimData()

◆ GetImagingSubprims()

◆ GetImagingSubprimType()

◆ InvalidateImagingSubprim()

◆ MarkDirty()

◆ Populate()

◆ ProcessPropertyChange()

◆ TrackVariability()

◆ UpdateForTime()
