HdStTextureObject Class Reference

Base class for a texture object. More...

#include <textureObject.h>

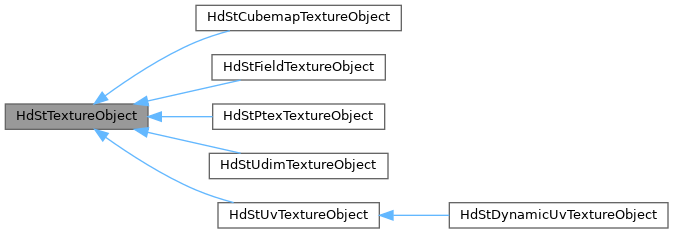

Inheritance diagram for HdStTextureObject:

Public Member Functions
const HdStTextureIdentifier &	GetTextureIdentifier () const
	Get texture identifier.
size_t	GetTargetMemory () const
	Get the target memory for the texture.
HDST_API void	SetTargetMemory (size_t)
	Set the target memory (in bytes).
virtual HDST_API bool	IsValid () const =0
	Is texture valid? Only correct after commit phase.
virtual HDST_API HdTextureType	GetTextureType () const =0
	Get texture type.

Protected Member Functions
	HdStTextureObject (const HdStTextureIdentifier &textureId, HdSt_TextureObjectRegistry *textureObjectRegistry)
HDST_API HdStResourceRegistry *	_GetResourceRegistry () const
HDST_API Hgi *	_GetHgi () const
HDST_API std::string	_GetDebugName (const HdStTextureIdentifier &textureId) const
HDST_API bool	_GetPremultiplyAlpha (const HdStSubtextureIdentifier *const subId) const
HDST_API HioImage::SourceColorSpace	_GetSourceColorSpace (const HdStSubtextureIdentifier *const subId) const
virtual HDST_API void	_Load ()=0
	Load texture to CPU (thread-safe)
virtual HDST_API void	_Commit ()=0
	Commit texture to GPU (not thread-safe)
HDST_API void	_AdjustTotalTextureMemory (int64_t memDiff)
	Add signed number to total texture memory amount maintained by registry.
HDST_API void	_AddToTotalTextureMemory (const HgiTextureHandle &texture)
	Compute memory of texture and add to total texture memory amount maintained by registry.
HDST_API void	_SubtractFromTotalTextureMemory (const HgiTextureHandle &texture)
	Compute memory of texture and subtract to total texture memory amount maintained by registry.

Detailed Description

Base class for a texture object.

The actual GPU resources will be allocated during the commit phase.

Definition at line 58 of file textureObject.h.

Member Function Documentation

_AddToTotalTextureMemory()

HDST_API void _AddToTotalTextureMemory ( const HgiTextureHandle &  texture )

protected

Compute memory of texture and add to total texture memory amount maintained by registry.

_AdjustTotalTextureMemory()

HDST_API void _AdjustTotalTextureMemory ( int64_t  memDiff )

protected

Add signed number to total texture memory amount maintained by registry.

_Commit()

virtual HDST_API void _Commit ( )

protectedpure virtual

Commit texture to GPU (not thread-safe)

Implemented in HdStDynamicUvTextureObject, HdStPtexTextureObject, HdStFieldTextureObject, and HdStUdimTextureObject.

_Load()

virtual HDST_API void _Load ( )

protectedpure virtual

Load texture to CPU (thread-safe)

Implemented in HdStDynamicUvTextureObject, HdStPtexTextureObject, HdStFieldTextureObject, and HdStUdimTextureObject.

_SubtractFromTotalTextureMemory()

HDST_API void _SubtractFromTotalTextureMemory ( const HgiTextureHandle &  texture )

protected

Compute memory of texture and subtract to total texture memory amount maintained by registry.

GetTargetMemory()

size_t GetTargetMemory ( ) const

inline

Get the target memory for the texture.

Definition at line 69 of file textureObject.h.

GetTextureIdentifier()

const HdStTextureIdentifier & GetTextureIdentifier ( ) const

inline

Get texture identifier.

Definition at line 65 of file textureObject.h.

GetTextureType()

virtual HDST_API HdTextureType GetTextureType ( ) const

pure virtual

Get texture type.

Implemented in HdStPtexTextureObject, HdStFieldTextureObject, HdStUdimTextureObject, and HdStUvTextureObject.

IsValid()

virtual HDST_API bool IsValid ( ) const

pure virtual

Is texture valid? Only correct after commit phase.

E.g., no file at given file path. Consulted by clients to determine whether to use the fallback value.

Implemented in HdStDynamicUvTextureObject, HdStPtexTextureObject, HdStFieldTextureObject, and HdStUdimTextureObject.

SetTargetMemory()

HDST_API void SetTargetMemory

(

size_t

)

Set the target memory (in bytes).

When uploading the texture to the GPU, it will be downsampled to meet this target memory.

---

The documentation for this class was generated from the following file:

• pxr/imaging/hdSt/textureObject.h
