UsdGeomPlane Class Reference

Defines a primitive plane, centered at the origin, and is defined by a cardinal axis, width, and length. More...

#include <plane.h>

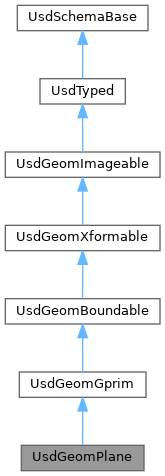

+ Inheritance diagram for UsdGeomPlane:

Public Member Functions

 UsdGeomPlane (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomPlane on UsdPrim prim .

 UsdGeomPlane (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomPlane on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomPlane ()
 Destructor.

USDGEOM_API UsdAttribute GetDoubleSidedAttr () const
 Planes are double-sided by default.

USDGEOM_API UsdAttribute CreateDoubleSidedAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDoubleSidedAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetWidthAttr () const
 The width of the plane, which aligns to the x-axis when axis is 'Z' or 'Y', or to the z-axis when axis is 'X'.

USDGEOM_API UsdAttribute CreateWidthAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetWidthAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetLengthAttr () const
 The length of the plane, which aligns to the y-axis when axis is 'Z' or 'X', or to the z-axis when axis is 'Y'.

USDGEOM_API UsdAttribute CreateLengthAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetLengthAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetAxisAttr () const
 The axis along which the surface of the plane is aligned.

USDGEOM_API UsdAttribute CreateAxisAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetAxisAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetExtentAttr () const
 Extent is re-defined on Plane only to provide a fallback value.

USDGEOM_API UsdAttribute CreateExtentAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetExtentAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

- Public Member Functions inherited from UsdGeomGprim
 UsdGeomGprim (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomGprim on UsdPrim prim .

 UsdGeomGprim (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomGprim on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomGprim ()
 Destructor.

USDGEOM_API UsdAttribute GetDisplayColorAttr () const
 It is useful to have an "official" colorSet that can be used as a display or modeling color, even in the absence of any specified shader for a gprim.

USDGEOM_API UsdAttribute CreateDisplayColorAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDisplayColorAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetDisplayOpacityAttr () const
 Companion to displayColor that specifies opacity, broken out as an independent attribute rather than an rgba color, both so that each can be independently overridden, and because shaders rarely consume rgba parameters.

USDGEOM_API UsdAttribute CreateDisplayOpacityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDisplayOpacityAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetDoubleSidedAttr () const
 Although some renderers treat all parametric or polygonal surfaces as if they were effectively laminae with outward-facing normals on both sides, some renderers derive significant optimizations by considering these surfaces to have only a single outward side, typically determined by control-point winding order and/or orientation.

USDGEOM_API UsdAttribute CreateDoubleSidedAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDoubleSidedAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetOrientationAttr () const
 Orientation specifies whether the gprim's surface normal should be computed using the right hand rule, or the left hand rule.

USDGEOM_API UsdAttribute CreateOrientationAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetOrientationAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdGeomPrimvar GetDisplayColorPrimvar () const
 Convenience function to get the displayColor Attribute as a Primvar.

USDGEOM_API UsdGeomPrimvar CreateDisplayColorPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const
 Convenience function to create the displayColor primvar, optionally specifying interpolation and elementSize.

USDGEOM_API UsdGeomPrimvar GetDisplayOpacityPrimvar () const
 Convenience function to get the displayOpacity Attribute as a Primvar.

USDGEOM_API UsdGeomPrimvar CreateDisplayOpacityPrimvar (const TfToken &interpolation=TfToken(), int elementSize=-1) const
 Convenience function to create the displayOpacity primvar, optionally specifying interpolation and elementSize.

- Public Member Functions inherited from UsdGeomBoundable
 UsdGeomBoundable (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomBoundable on UsdPrim prim .

 UsdGeomBoundable (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomBoundable on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomBoundable ()
 Destructor.

USDGEOM_API UsdAttribute GetExtentAttr () const
 Extent is a three dimensional range measuring the geometric extent of the authored gprim in its own local space (i.e.

USDGEOM_API UsdAttribute CreateExtentAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetExtentAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API bool ComputeExtent (const UsdTimeCode &time, VtVec3fArray *extent) const
 If an extent is authored on this boundable, it queries the extent from the extent attribute, otherwise if ComputeExtentFunction is registered for the boundable's type, it computes the extent at time.

- Public Member Functions inherited from UsdGeomXformable
 UsdGeomXformable (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomXformable on UsdPrim prim .

 UsdGeomXformable (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomXformable on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomXformable ()
 Destructor.

USDGEOM_API UsdAttribute GetXformOpOrderAttr () const
 Encodes the sequence of transformation operations in the order in which they should be pushed onto a transform stack while visiting a UsdStage's prims in a graph traversal that will effect the desired positioning for this prim and its descendant prims.

USDGEOM_API UsdAttribute CreateXformOpOrderAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetXformOpOrderAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdGeomXformOp AddXformOp (UsdGeomXformOp::Type const opType, UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add an affine transformation to the local stack represented by this Xformable.

USDGEOM_API UsdGeomXformOp GetXformOp (UsdGeomXformOp::Type const opType, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get an affine transformation from the local stack represented by this Xformable.

USDGEOM_API UsdGeomXformOp AddTranslateOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a translate operation to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetTranslateOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a translate operation from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddScaleOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a scale operation to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetScaleOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a scale operation from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation about the X-axis to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation about the X-axis from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation about the Y-axis to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation about the Y-axis from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation about the Z-axis to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation about the Z-axis from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateXYZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with XYZ rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateXYZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with XYZ rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateXZYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with XZY rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateXZYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with XZY rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateYXZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with YXZ rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateYXZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with YXZ rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateYZXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with YZX rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateYZXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with YZX rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateZXYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with ZXY rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateZXYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with ZXY rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateZYXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with ZYX rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateZYXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with ZYX rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddOrientOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a orient op (arbitrary axis/angle rotation) to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetOrientOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get an orient op (arbitrary axis/angle rotation) from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddTransformOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a tranform op (4x4 matrix transformation) to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetTransformOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a tranform op (4x4 matrix transformation) from the local stack represented by this xformable.

USDGEOM_API bool SetResetXformStack (bool resetXform) const
 Specify whether this prim's transform should reset the transformation stack inherited from its parent prim.

USDGEOM_API bool GetResetXformStack () const
 Does this prim reset its parent's inherited transformation?

USDGEOM_API bool SetXformOpOrder (std::vector< UsdGeomXformOp > const &orderedXformOps, bool resetXformStack=false) const
 Reorder the already-existing transform ops on this prim.

USDGEOM_API std::vector< UsdGeomXformOpGetOrderedXformOps (bool *resetsXformStack) const
 Return the ordered list of transform operations to be applied to this prim, in least-to-most-local order.

USDGEOM_API bool ClearXformOpOrder () const
 Clears the local transform stack.

USDGEOM_API UsdGeomXformOp MakeMatrixXform () const
 Clears the existing local transform stack and creates a new xform op of type 'transform'.

USDGEOM_API bool TransformMightBeTimeVarying () const
 Determine whether there is any possibility that this prim's local transformation may vary over time.

USDGEOM_API bool TransformMightBeTimeVarying (const std::vector< UsdGeomXformOp > &ops) const
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Determine whether there is any possibility that this prim's local transformation may vary over time, using a pre-fetched (cached) list of ordered xform ops supplied by the client.

USDGEOM_API bool GetTimeSamples (std::vector< double > *times) const
 Sets times to the union of all the timesamples at which xformOps that are included in the xformOpOrder attribute are authored.

USDGEOM_API bool GetTimeSamplesInInterval (const GfInterval &interval, std::vector< double > *times) const
 Sets times to the union of all the timesamples in the interval, interval, at which xformOps that are included in the xformOpOrder attribute are authored.

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const UsdTimeCode time=UsdTimeCode::Default()) const
 Computes the fully-combined, local-to-parent transformation for this prim.

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const std::vector< UsdGeomXformOp > &ops, const UsdTimeCode time=UsdTimeCode::Default()) const
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Computes the fully-combined, local-to-parent transformation for this prim as efficiently as possible, using a pre-fetched (cached) list of ordered xform ops supplied by the client.

- Public Member Functions inherited from UsdGeomImageable
 UsdGeomImageable (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomImageable on UsdPrim prim .

 UsdGeomImageable (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomImageable on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomImageable ()
 Destructor.

USDGEOM_API UsdAttribute GetVisibilityAttr () const
 Visibility is meant to be the simplest form of "pruning" visibility that is supported by most DCC apps.

USDGEOM_API UsdAttribute CreateVisibilityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetVisibilityAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetPurposeAttr () const
 Purpose is a classification of geometry into categories that can each be independently included or excluded from traversals of prims on a stage, such as rendering or bounding-box computation traversals.

USDGEOM_API UsdAttribute CreatePurposeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetPurposeAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdRelationship GetProxyPrimRel () const
 The proxyPrim relationship allows us to link a prim whose purpose is "render" to its (single target) purpose="proxy" prim.

USDGEOM_API UsdRelationship CreateProxyPrimRel () const
 See GetProxyPrimRel(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API void MakeVisible (const UsdTimeCode &time=UsdTimeCode::Default()) const
 Make the imageable visible if it is invisible at the given time.

USDGEOM_API void MakeInvisible (const UsdTimeCode &time=UsdTimeCode::Default()) const
 Makes the imageable invisible if it is visible at the given time.

USDGEOM_API TfToken ComputeVisibility (UsdTimeCode const &time=UsdTimeCode::Default()) const
 Calculate the effective visibility of this prim, as defined by its most ancestral authored "invisible" opinion, if any.

USDGEOM_API UsdAttribute GetPurposeVisibilityAttr (const TfToken &purpose=UsdGeomTokens->default_) const
 Return the attribute that is used for expressing visibility opinions for the given purpose.

USDGEOM_API TfToken ComputeEffectiveVisibility (const TfToken &purpose=UsdGeomTokens->default_, const UsdTimeCode &time=UsdTimeCode::Default()) const
 Calculate the effective purpose visibility of this prim for the given purpose, taking into account opinions for the corresponding purpose attribute, along with overall visibility opinions.

USDGEOM_API PurposeInfo ComputePurposeInfo () const
 Calculate the effective purpose information about this prim which includes final computed purpose value of the prim as well as whether the purpose value should be inherited by namespace children without their own purpose opinions.

USDGEOM_API PurposeInfo ComputePurposeInfo (const PurposeInfo &parentPurposeInfo) const
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Calculates the effective purpose information about this prim, given the computed purpose information of its parent prim.

USDGEOM_API TfToken ComputePurpose () const
 Calculate the effective purpose information about this prim.

USDGEOM_API UsdPrim ComputeProxyPrim (UsdPrim *renderPrim=NULL) const
 Find the prim whose purpose is proxy that serves as the proxy for this prim, as established by the GetProxyPrimRel(), or an invalid UsdPrim if this prim has no proxy.

USDGEOM_API bool SetProxyPrim (const UsdPrim &proxy) const
 Convenience function for authoring the renderProxy rel on this prim to target the given proxy prim.

USDGEOM_API bool SetProxyPrim (const UsdSchemaBase &proxy) const

USDGEOM_API GfBBox3d ComputeWorldBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
 Compute the bound of this prim in world space, at the specified time, and for the specified purposes.

USDGEOM_API GfBBox3d ComputeLocalBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
 Compute the bound of this prim in local space, at the specified time, and for the specified purposes.

USDGEOM_API GfBBox3d ComputeUntransformedBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
 Compute the untransformed bound of this prim, at the specified time, and for the specified purposes.

USDGEOM_API GfMatrix4d ComputeLocalToWorldTransform (UsdTimeCode const &time) const
 Compute the transformation matrix for this prim at the given time, including the transform authored on the Prim itself, if present.

USDGEOM_API GfMatrix4d ComputeParentToWorldTransform (UsdTimeCode const &time) const
 Compute the transformation matrix for this prim at the given time, NOT including the transform authored on the prim itself.

- Public Member Functions inherited from UsdTyped
 UsdTyped (const UsdPrim &prim=UsdPrim())
 Construct a UsdTyped on UsdPrim prim .

 UsdTyped (const UsdSchemaBase &schemaObj)
 Construct a UsdTyped on the prim held by schemaObj .

virtual USD_API ~UsdTyped ()
 Destructor.

- Public Member Functions inherited from UsdSchemaBase
bool IsConcrete () const
 Returns whether or not this class corresponds to a concrete instantiable prim type in scene description.

bool IsTyped () const
 Returns whether or not this class inherits from UsdTyped.

bool IsAPISchema () const
 Returns whether this is an API schema or not.

bool IsAppliedAPISchema () const
 Returns whether this is an applied API schema or not.

bool IsMultipleApplyAPISchema () const
 Returns whether this is an applied API schema or not.

UsdSchemaKind GetSchemaKind () const
 Returns the kind of schema this class is.

USD_API UsdSchemaBase (const UsdPrim &prim=UsdPrim())
 Construct and store prim as the held prim.

USD_API UsdSchemaBase (const UsdSchemaBase &otherSchema)
 Construct and store for the same prim held by otherSchema.

virtual USD_API ~UsdSchemaBase ()
 Destructor.

UsdPrim GetPrim () const
 Return this schema object's held prim.

SdfPath GetPath () const
 Shorthand for GetPrim()->GetPath().

USD_API const UsdPrimDefinitionGetSchemaClassPrimDefinition () const
 Return the prim definition associated with this schema instance if one exists, otherwise return null.

USD_API operator bool () const
 Return true if this schema object is compatible with its held prim, false otherwise.


Static Public Member Functions

static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomPlane Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomPlane holding the prim adhering to this schema at path on stage.

static USDGEOM_API UsdGeomPlane Define (const UsdStagePtr &stage, const SdfPath &path)
 Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

static USDGEOM_API bool ComputeExtent (double width, double length, const TfToken &axis, VtVec3fArray *extent)
 Compute the extent for the plane defined by the size of each dimension.

static USDGEOM_API bool ComputeExtent (double width, double length, const TfToken &axis, const GfMatrix4d &transform, VtVec3fArray *extent)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Computes the extent as if the matrix transform was first applied.

- Static Public Member Functions inherited from UsdGeomGprim
static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomGprim Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomGprim holding the prim adhering to this schema at path on stage.

- Static Public Member Functions inherited from UsdGeomBoundable
static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomBoundable Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomBoundable holding the prim adhering to this schema at path on stage.

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, VtVec3fArray *extent)
 Compute the extent for the Boundable prim boundable at time time.

static USDGEOM_API bool ComputeExtentFromPlugins (const UsdGeomBoundable &boundable, const UsdTimeCode &time, const GfMatrix4d &transform, VtVec3fArray *extent)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Computes the extent as if the matrix transform was first applied.

- Static Public Member Functions inherited from UsdGeomXformable
static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomXformable Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomXformable holding the prim adhering to this schema at path on stage.

static USDGEOM_API bool GetTimeSamples (std::vector< UsdGeomXformOp > const &orderedXformOps, std::vector< double > *times)
 Returns the union of all the timesamples at which the attributes belonging to the given orderedXformOps are authored.

static USDGEOM_API bool GetTimeSamplesInInterval (std::vector< UsdGeomXformOp > const &orderedXformOps, const GfInterval &interval, std::vector< double > *times)
 Returns the union of all the timesamples in the interval at which the attributes belonging to the given orderedXformOps are authored.

static USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, std::vector< UsdGeomXformOp > const &ops, const UsdTimeCode time)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. This is a static version of the preceding function that takes a cached list of ordered xform ops.

static USDGEOM_API bool IsTransformationAffectedByAttrNamed (const TfToken &attrName)
 Returns true if the attribute named attrName could affect the local transformation of an xformable prim.

- Static Public Member Functions inherited from UsdGeomImageable
static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomImageable Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomImageable holding the prim adhering to this schema at path on stage.

static USDGEOM_API const TfTokenVectorGetOrderedPurposeTokens ()
 Returns an ordered list of allowed values of the purpose attribute.

- Static Public Member Functions inherited from UsdTyped
static USD_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USD_API UsdTyped Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdTyped holding the prim adhering to this schema at path on stage.

- Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)


Static Public Attributes

static const UsdSchemaKind schemaKind = UsdSchemaKind::ConcreteTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdGeomGprim
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdGeomBoundable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdGeomXformable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdGeomImageable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdTyped
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase
 Compile time constant representing what kind of schema this class is.


Protected Member Functions

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

- Protected Member Functions inherited from UsdGeomXformable
USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

- Protected Member Functions inherited from UsdTyped
USD_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USD_API bool _IsCompatible () const override
 Subclasses may override _IsCompatible to do specific compatibility checking with the given prim, such as type compatibility or value compatibility.

- Protected Member Functions inherited from UsdSchemaBase
virtual UsdSchemaKind _GetSchemaType () const

const TfType_GetType () const

USD_API UsdAttribute _CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const


Friends

class UsdSchemaRegistry


Detailed Description

Defines a primitive plane, centered at the origin, and is defined by a cardinal axis, width, and length.

The plane is double-sided by default.

The axis of width and length are perpendicular to the plane's axis:

axis width length
X z-axis y-axis
Y x-axis z-axis
Z x-axis y-axis

For any described attribute Fallback Value or Allowed Values below that are text/tokens, the actual token is published and defined in UsdGeomTokens. So to set an attribute to the value "rightHanded", use UsdGeomTokens->rightHanded as the value.

Definition at line 73 of file plane.h.

Constructor & Destructor Documentation

◆ UsdGeomPlane() [1/2]

UsdGeomPlane ( const UsdPrim prim = UsdPrim())
inlineexplicit

Construct a UsdGeomPlane on UsdPrim prim .

Equivalent to UsdGeomPlane::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 85 of file plane.h.

◆ UsdGeomPlane() [2/2]

UsdGeomPlane ( const UsdSchemaBase schemaObj)
inlineexplicit

Construct a UsdGeomPlane on the prim held by schemaObj .

Should be preferred over UsdGeomPlane(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 93 of file plane.h.

◆ ~UsdGeomPlane()

virtual USDGEOM_API ~UsdGeomPlane ( )
virtual

Destructor.

Member Function Documentation

◆ _GetSchemaKind()

USDGEOM_API UsdSchemaKind _GetSchemaKind ( ) const
overrideprotectedvirtual

Returns the kind of schema this class belongs to.

See also
UsdSchemaKind

Reimplemented from UsdGeomGprim.

◆ ComputeExtent() [1/2]

static USDGEOM_API bool ComputeExtent ( double  width,
double  length,
const TfToken axis,
const GfMatrix4d transform,
VtVec3fArray *  extent
)
static

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Computes the extent as if the matrix transform was first applied.

◆ ComputeExtent() [2/2]

static USDGEOM_API bool ComputeExtent ( double  width,
double  length,
const TfToken axis,
VtVec3fArray *  extent
)
static

Compute the extent for the plane defined by the size of each dimension.

Returns
true upon success, false if unable to calculate extent.

On success, extent will contain an approximate axis-aligned bounding box of the plane defined by the size of each dimension.

This function is to provide easy authoring of extent for usd authoring tools, hence it is static and acts outside a specific prim (as in attribute based methods).

◆ CreateAxisAttr()

USDGEOM_API UsdAttribute CreateAxisAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetAxisAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateDoubleSidedAttr()

USDGEOM_API UsdAttribute CreateDoubleSidedAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDoubleSidedAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateExtentAttr()

USDGEOM_API UsdAttribute CreateExtentAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetExtentAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateLengthAttr()

USDGEOM_API UsdAttribute CreateLengthAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetLengthAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateWidthAttr()

USDGEOM_API UsdAttribute CreateWidthAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetWidthAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ Define()

static USDGEOM_API UsdGeomPlane Define ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

If a prim adhering to this schema at path is already defined on this stage, return that prim. Otherwise author an SdfPrimSpec with specifier == SdfSpecifierDef and this schema's prim type name for the prim at path at the current EditTarget. Author SdfPrimSpec s with specifier == SdfSpecifierDef and empty typeName at the current EditTarget for any nonexistent, or existing but not Defined ancestors.

The given path must be an absolute prim path that does not contain any variant selections.

If it is impossible to author any of the necessary PrimSpecs, (for example, in case path cannot map to the current UsdEditTarget's namespace) issue an error and return an invalid UsdPrim.

Note that this method may return a defined prim whose typeName does not specify this schema class, in case a stronger typeName opinion overrides the opinion at the current EditTarget.

◆ Get()

static USDGEOM_API UsdGeomPlane Get ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Return a UsdGeomPlane holding the prim adhering to this schema at path on stage.

If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdGeomPlane(stage->GetPrimAtPath(path));
Defines a primitive plane, centered at the origin, and is defined by a cardinal axis,...
Definition: plane.h:74

◆ GetAxisAttr()

USDGEOM_API UsdAttribute GetAxisAttr ( ) const

The axis along which the surface of the plane is aligned.

When set to 'Z' the plane is in the xy-plane; when axis is 'X' the plane is in the yz-plane, and when axis is 'Y' the plane is in the xz-plane.

See also
UsdGeomGprim::GetAxisAttr().
Declaration uniform token axis = "Z"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Variability SdfVariabilityUniform
Allowed Values X, Y, Z

◆ GetDoubleSidedAttr()

USDGEOM_API UsdAttribute GetDoubleSidedAttr ( ) const

Planes are double-sided by default.

Clients may also support single-sided planes.

See also
UsdGeomGprim::GetDoubleSidedAttr()
Declaration uniform bool doubleSided = 1
C++ Type bool
Usd Type SdfValueTypeNames->Bool
Variability SdfVariabilityUniform

◆ GetExtentAttr()

USDGEOM_API UsdAttribute GetExtentAttr ( ) const

Extent is re-defined on Plane only to provide a fallback value.

See also
UsdGeomGprim::GetExtentAttr().
Declaration float3[] extent = [(-1, -1, 0), (1, 1, 0)]
C++ Type VtArray<GfVec3f>
Usd Type SdfValueTypeNames->Float3Array

◆ GetLengthAttr()

USDGEOM_API UsdAttribute GetLengthAttr ( ) const

The length of the plane, which aligns to the y-axis when axis is 'Z' or 'X', or to the z-axis when axis is 'Y'.

If you author length you must also author extent.

See also
UsdGeomGprim::GetExtentAttr()
Declaration double length = 2
C++ Type double
Usd Type SdfValueTypeNames->Double

◆ GetSchemaAttributeNames()

static USDGEOM_API const TfTokenVector & GetSchemaAttributeNames ( bool  includeInherited = true)
static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

Does not include attributes that may be authored by custom/extended methods of the schemas involved.

◆ GetWidthAttr()

USDGEOM_API UsdAttribute GetWidthAttr ( ) const

The width of the plane, which aligns to the x-axis when axis is 'Z' or 'Y', or to the z-axis when axis is 'X'.

If you author width you must also author extent.

See also
UsdGeomGprim::GetExtentAttr()
Declaration double width = 2
C++ Type double
Usd Type SdfValueTypeNames->Double

Friends And Related Function Documentation

◆ UsdSchemaRegistry

friend class UsdSchemaRegistry
friend

Definition at line 157 of file plane.h.

Member Data Documentation

◆ schemaKind

const UsdSchemaKind schemaKind = UsdSchemaKind::ConcreteTyped
static

Compile time constant representing what kind of schema this class is.

See also
UsdSchemaKind

Definition at line 79 of file plane.h.


The documentation for this class was generated from the following file:
