UsdGeomXform Class Reference

Concrete prim schema for a transform, which implements Xformable. More...

#include <xform.h>

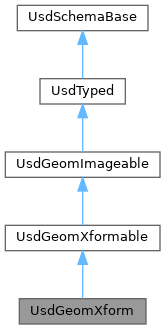

+ Inheritance diagram for UsdGeomXform:

Public Member Functions

 UsdGeomXform (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomXform on UsdPrim prim .

 UsdGeomXform (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomXform on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomXform ()
 Destructor.

- Public Member Functions inherited from UsdGeomXformable
 UsdGeomXformable (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomXformable on UsdPrim prim .

 UsdGeomXformable (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomXformable on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomXformable ()
 Destructor.

USDGEOM_API UsdAttribute GetXformOpOrderAttr () const
 Encodes the sequence of transformation operations in the order in which they should be pushed onto a transform stack while visiting a UsdStage's prims in a graph traversal that will effect the desired positioning for this prim and its descendant prims.

USDGEOM_API UsdAttribute CreateXformOpOrderAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetXformOpOrderAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdGeomXformOp AddXformOp (UsdGeomXformOp::Type const opType, UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add an affine transformation to the local stack represented by this Xformable.

USDGEOM_API UsdGeomXformOp GetXformOp (UsdGeomXformOp::Type const opType, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get an affine transformation from the local stack represented by this Xformable.

USDGEOM_API UsdGeomXformOp AddTranslateOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a translate operation to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetTranslateOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a translate operation from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddScaleOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a scale operation to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetScaleOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a scale operation from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation about the X-axis to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation about the X-axis from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation about the Y-axis to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation about the Y-axis from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation about the Z-axis to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation about the Z-axis from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateXYZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with XYZ rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateXYZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with XYZ rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateXZYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with XZY rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateXZYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with XZY rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateYXZOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with YXZ rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateYXZOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with YXZ rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateYZXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with YZX rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateYZXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with YZX rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateZXYOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with ZXY rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateZXYOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with ZXY rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddRotateZYXOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a rotation op with ZYX rotation order to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetRotateZYXOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a rotation op with ZYX rotation order from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddOrientOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionFloat, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a orient op (arbitrary axis/angle rotation) to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetOrientOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get an orient op (arbitrary axis/angle rotation) from the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp AddTransformOp (UsdGeomXformOp::Precision const precision=UsdGeomXformOp::PrecisionDouble, TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Add a tranform op (4x4 matrix transformation) to the local stack represented by this xformable.

USDGEOM_API UsdGeomXformOp GetTransformOp (TfToken const &opSuffix=TfToken(), bool isInverseOp=false) const
 Get a tranform op (4x4 matrix transformation) from the local stack represented by this xformable.

USDGEOM_API bool SetResetXformStack (bool resetXform) const
 Specify whether this prim's transform should reset the transformation stack inherited from its parent prim.

USDGEOM_API bool GetResetXformStack () const
 Does this prim reset its parent's inherited transformation?

USDGEOM_API bool SetXformOpOrder (std::vector< UsdGeomXformOp > const &orderedXformOps, bool resetXformStack=false) const
 Reorder the already-existing transform ops on this prim.

USDGEOM_API std::vector< UsdGeomXformOpGetOrderedXformOps (bool *resetsXformStack) const
 Return the ordered list of transform operations to be applied to this prim, in least-to-most-local order.

USDGEOM_API bool ClearXformOpOrder () const
 Clears the local transform stack.

USDGEOM_API UsdGeomXformOp MakeMatrixXform () const
 Clears the existing local transform stack and creates a new xform op of type 'transform'.

USDGEOM_API bool TransformMightBeTimeVarying () const
 Determine whether there is any possibility that this prim's local transformation may vary over time.

USDGEOM_API bool TransformMightBeTimeVarying (const std::vector< UsdGeomXformOp > &ops) const
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Determine whether there is any possibility that this prim's local transformation may vary over time, using a pre-fetched (cached) list of ordered xform ops supplied by the client.

USDGEOM_API bool GetTimeSamples (std::vector< double > *times) const
 Sets times to the union of all the timesamples at which xformOps that are included in the xformOpOrder attribute are authored.

USDGEOM_API bool GetTimeSamplesInInterval (const GfInterval &interval, std::vector< double > *times) const
 Sets times to the union of all the timesamples in the interval, interval, at which xformOps that are included in the xformOpOrder attribute are authored.

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const UsdTimeCode time=UsdTimeCode::Default()) const
 Computes the fully-combined, local-to-parent transformation for this prim.

USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, bool *resetsXformStack, const std::vector< UsdGeomXformOp > &ops, const UsdTimeCode time=UsdTimeCode::Default()) const
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Computes the fully-combined, local-to-parent transformation for this prim as efficiently as possible, using a pre-fetched (cached) list of ordered xform ops supplied by the client.

- Public Member Functions inherited from UsdGeomImageable
 UsdGeomImageable (const UsdPrim &prim=UsdPrim())
 Construct a UsdGeomImageable on UsdPrim prim .

 UsdGeomImageable (const UsdSchemaBase &schemaObj)
 Construct a UsdGeomImageable on the prim held by schemaObj .

virtual USDGEOM_API ~UsdGeomImageable ()
 Destructor.

USDGEOM_API UsdAttribute GetVisibilityAttr () const
 Visibility is meant to be the simplest form of "pruning" visibility that is supported by most DCC apps.

USDGEOM_API UsdAttribute CreateVisibilityAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetVisibilityAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdAttribute GetPurposeAttr () const
 Purpose is a classification of geometry into categories that can each be independently included or excluded from traversals of prims on a stage, such as rendering or bounding-box computation traversals.

USDGEOM_API UsdAttribute CreatePurposeAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetPurposeAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API UsdRelationship GetProxyPrimRel () const
 The proxyPrim relationship allows us to link a prim whose purpose is "render" to its (single target) purpose="proxy" prim.

USDGEOM_API UsdRelationship CreateProxyPrimRel () const
 See GetProxyPrimRel(), and also Create vs Get Property Methods for when to use Get vs Create.

USDGEOM_API void MakeVisible (const UsdTimeCode &time=UsdTimeCode::Default()) const
 Make the imageable visible if it is invisible at the given time.

USDGEOM_API void MakeInvisible (const UsdTimeCode &time=UsdTimeCode::Default()) const
 Makes the imageable invisible if it is visible at the given time.

USDGEOM_API TfToken ComputeVisibility (UsdTimeCode const &time=UsdTimeCode::Default()) const
 Calculate the effective visibility of this prim, as defined by its most ancestral authored "invisible" opinion, if any.

USDGEOM_API UsdAttribute GetPurposeVisibilityAttr (const TfToken &purpose=UsdGeomTokens->default_) const
 Return the attribute that is used for expressing visibility opinions for the given purpose.

USDGEOM_API TfToken ComputeEffectiveVisibility (const TfToken &purpose=UsdGeomTokens->default_, const UsdTimeCode &time=UsdTimeCode::Default()) const
 Calculate the effective purpose visibility of this prim for the given purpose, taking into account opinions for the corresponding purpose attribute, along with overall visibility opinions.

USDGEOM_API PurposeInfo ComputePurposeInfo () const
 Calculate the effective purpose information about this prim which includes final computed purpose value of the prim as well as whether the purpose value should be inherited by namespace children without their own purpose opinions.

USDGEOM_API PurposeInfo ComputePurposeInfo (const PurposeInfo &parentPurposeInfo) const
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Calculates the effective purpose information about this prim, given the computed purpose information of its parent prim.

USDGEOM_API TfToken ComputePurpose () const
 Calculate the effective purpose information about this prim.

USDGEOM_API UsdPrim ComputeProxyPrim (UsdPrim *renderPrim=NULL) const
 Find the prim whose purpose is proxy that serves as the proxy for this prim, as established by the GetProxyPrimRel(), or an invalid UsdPrim if this prim has no proxy.

USDGEOM_API bool SetProxyPrim (const UsdPrim &proxy) const
 Convenience function for authoring the renderProxy rel on this prim to target the given proxy prim.

USDGEOM_API bool SetProxyPrim (const UsdSchemaBase &proxy) const

USDGEOM_API GfBBox3d ComputeWorldBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
 Compute the bound of this prim in world space, at the specified time, and for the specified purposes.

USDGEOM_API GfBBox3d ComputeLocalBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
 Compute the bound of this prim in local space, at the specified time, and for the specified purposes.

USDGEOM_API GfBBox3d ComputeUntransformedBound (UsdTimeCode const &time, TfToken const &purpose1=TfToken(), TfToken const &purpose2=TfToken(), TfToken const &purpose3=TfToken(), TfToken const &purpose4=TfToken()) const
 Compute the untransformed bound of this prim, at the specified time, and for the specified purposes.

USDGEOM_API GfMatrix4d ComputeLocalToWorldTransform (UsdTimeCode const &time) const
 Compute the transformation matrix for this prim at the given time, including the transform authored on the Prim itself, if present.

USDGEOM_API GfMatrix4d ComputeParentToWorldTransform (UsdTimeCode const &time) const
 Compute the transformation matrix for this prim at the given time, NOT including the transform authored on the prim itself.

- Public Member Functions inherited from UsdTyped
 UsdTyped (const UsdPrim &prim=UsdPrim())
 Construct a UsdTyped on UsdPrim prim .

 UsdTyped (const UsdSchemaBase &schemaObj)
 Construct a UsdTyped on the prim held by schemaObj .

virtual USD_API ~UsdTyped ()
 Destructor.

- Public Member Functions inherited from UsdSchemaBase
bool IsConcrete () const
 Returns whether or not this class corresponds to a concrete instantiable prim type in scene description.

bool IsTyped () const
 Returns whether or not this class inherits from UsdTyped.

bool IsAPISchema () const
 Returns whether this is an API schema or not.

bool IsAppliedAPISchema () const
 Returns whether this is an applied API schema or not.

bool IsMultipleApplyAPISchema () const
 Returns whether this is an applied API schema or not.

UsdSchemaKind GetSchemaKind () const
 Returns the kind of schema this class is.

USD_API UsdSchemaBase (const UsdPrim &prim=UsdPrim())
 Construct and store prim as the held prim.

USD_API UsdSchemaBase (const UsdSchemaBase &otherSchema)
 Construct and store for the same prim held by otherSchema.

virtual USD_API ~UsdSchemaBase ()
 Destructor.

UsdPrim GetPrim () const
 Return this schema object's held prim.

SdfPath GetPath () const
 Shorthand for GetPrim()->GetPath().

USD_API const UsdPrimDefinitionGetSchemaClassPrimDefinition () const
 Return the prim definition associated with this schema instance if one exists, otherwise return null.

USD_API operator bool () const
 Return true if this schema object is compatible with its held prim, false otherwise.


Static Public Member Functions

static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomXform Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomXform holding the prim adhering to this schema at path on stage.

static USDGEOM_API UsdGeomXform Define (const UsdStagePtr &stage, const SdfPath &path)
 Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

- Static Public Member Functions inherited from UsdGeomXformable
static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomXformable Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomXformable holding the prim adhering to this schema at path on stage.

static USDGEOM_API bool GetTimeSamples (std::vector< UsdGeomXformOp > const &orderedXformOps, std::vector< double > *times)
 Returns the union of all the timesamples at which the attributes belonging to the given orderedXformOps are authored.

static USDGEOM_API bool GetTimeSamplesInInterval (std::vector< UsdGeomXformOp > const &orderedXformOps, const GfInterval &interval, std::vector< double > *times)
 Returns the union of all the timesamples in the interval at which the attributes belonging to the given orderedXformOps are authored.

static USDGEOM_API bool GetLocalTransformation (GfMatrix4d *transform, std::vector< UsdGeomXformOp > const &ops, const UsdTimeCode time)
 This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. This is a static version of the preceding function that takes a cached list of ordered xform ops.

static USDGEOM_API bool IsTransformationAffectedByAttrNamed (const TfToken &attrName)
 Returns true if the attribute named attrName could affect the local transformation of an xformable prim.

- Static Public Member Functions inherited from UsdGeomImageable
static USDGEOM_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDGEOM_API UsdGeomImageable Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdGeomImageable holding the prim adhering to this schema at path on stage.

static USDGEOM_API const TfTokenVectorGetOrderedPurposeTokens ()
 Returns an ordered list of allowed values of the purpose attribute.

- Static Public Member Functions inherited from UsdTyped
static USD_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USD_API UsdTyped Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdTyped holding the prim adhering to this schema at path on stage.

- Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)


Static Public Attributes

static const UsdSchemaKind schemaKind = UsdSchemaKind::ConcreteTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdGeomXformable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdGeomImageable
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdTyped
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase
 Compile time constant representing what kind of schema this class is.


Protected Member Functions

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

- Protected Member Functions inherited from UsdGeomXformable
USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USDGEOM_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

- Protected Member Functions inherited from UsdTyped
USD_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USD_API bool _IsCompatible () const override
 Subclasses may override _IsCompatible to do specific compatibility checking with the given prim, such as type compatibility or value compatibility.

- Protected Member Functions inherited from UsdSchemaBase
virtual UsdSchemaKind _GetSchemaType () const

const TfType_GetType () const

USD_API UsdAttribute _CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const


Friends

class UsdSchemaRegistry


Detailed Description

Concrete prim schema for a transform, which implements Xformable.

Definition at line 56 of file xform.h.

Constructor & Destructor Documentation

◆ UsdGeomXform() [1/2]

UsdGeomXform ( const UsdPrim prim = UsdPrim())
inlineexplicit

Construct a UsdGeomXform on UsdPrim prim .

Equivalent to UsdGeomXform::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 68 of file xform.h.

◆ UsdGeomXform() [2/2]

UsdGeomXform ( const UsdSchemaBase schemaObj)
inlineexplicit

Construct a UsdGeomXform on the prim held by schemaObj .

Should be preferred over UsdGeomXform(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 76 of file xform.h.

◆ ~UsdGeomXform()

virtual USDGEOM_API ~UsdGeomXform ( )
virtual

Destructor.

Member Function Documentation

◆ _GetSchemaKind()

USDGEOM_API UsdSchemaKind _GetSchemaKind ( ) const
overrideprotectedvirtual

Returns the kind of schema this class belongs to.

See also
UsdSchemaKind

Reimplemented from UsdGeomImageable.

◆ Define()

static USDGEOM_API UsdGeomXform Define ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Attempt to ensure a UsdPrim adhering to this schema at path is defined (according to UsdPrim::IsDefined()) on this stage.

If a prim adhering to this schema at path is already defined on this stage, return that prim. Otherwise author an SdfPrimSpec with specifier == SdfSpecifierDef and this schema's prim type name for the prim at path at the current EditTarget. Author SdfPrimSpec s with specifier == SdfSpecifierDef and empty typeName at the current EditTarget for any nonexistent, or existing but not Defined ancestors.

The given path must be an absolute prim path that does not contain any variant selections.

If it is impossible to author any of the necessary PrimSpecs, (for example, in case path cannot map to the current UsdEditTarget's namespace) issue an error and return an invalid UsdPrim.

Note that this method may return a defined prim whose typeName does not specify this schema class, in case a stronger typeName opinion overrides the opinion at the current EditTarget.

◆ Get()

static USDGEOM_API UsdGeomXform Get ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Return a UsdGeomXform holding the prim adhering to this schema at path on stage.

If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdGeomXform(stage->GetPrimAtPath(path));
Concrete prim schema for a transform, which implements Xformable.
Definition: xform.h:57

◆ GetSchemaAttributeNames()

static USDGEOM_API const TfTokenVector & GetSchemaAttributeNames ( bool  includeInherited = true)
static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

Does not include attributes that may be authored by custom/extended methods of the schemas involved.

Friends And Related Function Documentation

◆ UsdSchemaRegistry

friend class UsdSchemaRegistry
friend

Definition at line 140 of file xform.h.

Member Data Documentation

◆ schemaKind

const UsdSchemaKind schemaKind = UsdSchemaKind::ConcreteTyped
static

Compile time constant representing what kind of schema this class is.

See also
UsdSchemaKind

Definition at line 62 of file xform.h.


The documentation for this class was generated from the following file:
