UsdRenderSettingsBase Class Reference

Abstract base class that defines render settings that can be specified on either a RenderSettings prim or a RenderProduct prim. More...

#include <settingsBase.h>

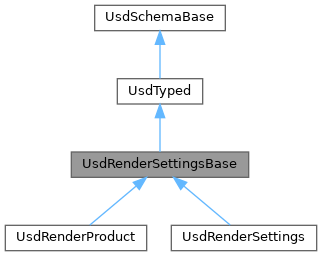

+ Inheritance diagram for UsdRenderSettingsBase:

Public Member Functions

 UsdRenderSettingsBase (const UsdPrim &prim=UsdPrim())
 Construct a UsdRenderSettingsBase on UsdPrim prim .

 UsdRenderSettingsBase (const UsdSchemaBase &schemaObj)
 Construct a UsdRenderSettingsBase on the prim held by schemaObj .

virtual USDRENDER_API ~UsdRenderSettingsBase ()
 Destructor.

USDRENDER_API UsdAttribute GetResolutionAttr () const
 The image pixel resolution, corresponding to the camera's screen window.

USDRENDER_API UsdAttribute CreateResolutionAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetResolutionAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdAttribute GetPixelAspectRatioAttr () const
 The aspect ratio (width/height) of image pixels.

USDRENDER_API UsdAttribute CreatePixelAspectRatioAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetPixelAspectRatioAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdAttribute GetAspectRatioConformPolicyAttr () const
 Indicates the policy to use to resolve an aspect ratio mismatch between the camera aperture and image settings.

USDRENDER_API UsdAttribute CreateAspectRatioConformPolicyAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetAspectRatioConformPolicyAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdAttribute GetDataWindowNDCAttr () const
 dataWindowNDC specifies the axis-aligned rectangular region in the adjusted aperture window within which the renderer should produce data.

USDRENDER_API UsdAttribute CreateDataWindowNDCAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDataWindowNDCAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdAttribute GetInstantaneousShutterAttr () const
 Deprecated - use disableMotionBlur instead.

USDRENDER_API UsdAttribute CreateInstantaneousShutterAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetInstantaneousShutterAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdAttribute GetDisableMotionBlurAttr () const
 Disable all motion blur by setting the shutter interval of the targeted camera to [0,0] - that is, take only one sample, namely at the current time code.

USDRENDER_API UsdAttribute CreateDisableMotionBlurAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDisableMotionBlurAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdAttribute GetDisableDepthOfFieldAttr () const
 Disable all depth of field by setting F-stop of the targeted camera to infinity.

USDRENDER_API UsdAttribute CreateDisableDepthOfFieldAttr (VtValue const &defaultValue=VtValue(), bool writeSparsely=false) const
 See GetDisableDepthOfFieldAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

USDRENDER_API UsdRelationship GetCameraRel () const
 The camera relationship specifies the primary camera to use in a render.

USDRENDER_API UsdRelationship CreateCameraRel () const
 See GetCameraRel(), and also Create vs Get Property Methods for when to use Get vs Create.

- Public Member Functions inherited from UsdTyped
 UsdTyped (const UsdPrim &prim=UsdPrim())
 Construct a UsdTyped on UsdPrim prim .

 UsdTyped (const UsdSchemaBase &schemaObj)
 Construct a UsdTyped on the prim held by schemaObj .

virtual USD_API ~UsdTyped ()
 Destructor.

- Public Member Functions inherited from UsdSchemaBase
bool IsConcrete () const
 Returns whether or not this class corresponds to a concrete instantiable prim type in scene description.

bool IsTyped () const
 Returns whether or not this class inherits from UsdTyped.

bool IsAPISchema () const
 Returns whether this is an API schema or not.

bool IsAppliedAPISchema () const
 Returns whether this is an applied API schema or not.

bool IsMultipleApplyAPISchema () const
 Returns whether this is an applied API schema or not.

UsdSchemaKind GetSchemaKind () const
 Returns the kind of schema this class is.

USD_API UsdSchemaBase (const UsdPrim &prim=UsdPrim())
 Construct and store prim as the held prim.

USD_API UsdSchemaBase (const UsdSchemaBase &otherSchema)
 Construct and store for the same prim held by otherSchema.

virtual USD_API ~UsdSchemaBase ()
 Destructor.

UsdPrim GetPrim () const
 Return this schema object's held prim.

SdfPath GetPath () const
 Shorthand for GetPrim()->GetPath().

USD_API const UsdPrimDefinitionGetSchemaClassPrimDefinition () const
 Return the prim definition associated with this schema instance if one exists, otherwise return null.

USD_API operator bool () const
 Return true if this schema object is compatible with its held prim, false otherwise.


Static Public Member Functions

static USDRENDER_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USDRENDER_API UsdRenderSettingsBase Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdRenderSettingsBase holding the prim adhering to this schema at path on stage.

- Static Public Member Functions inherited from UsdTyped
static USD_API const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)
 Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

static USD_API UsdTyped Get (const UsdStagePtr &stage, const SdfPath &path)
 Return a UsdTyped holding the prim adhering to this schema at path on stage.

- Static Public Member Functions inherited from UsdSchemaBase
static const TfTokenVectorGetSchemaAttributeNames (bool includeInherited=true)


Static Public Attributes

static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdTyped
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase
 Compile time constant representing what kind of schema this class is.

- Static Public Attributes inherited from UsdSchemaBase
static const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractBase
 Compile time constant representing what kind of schema this class is.


Protected Member Functions

USDRENDER_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

- Protected Member Functions inherited from UsdTyped
USD_API UsdSchemaKind _GetSchemaKind () const override
 Returns the kind of schema this class belongs to.

USD_API bool _IsCompatible () const override
 Subclasses may override _IsCompatible to do specific compatibility checking with the given prim, such as type compatibility or value compatibility.

- Protected Member Functions inherited from UsdSchemaBase
virtual UsdSchemaKind _GetSchemaType () const

const TfType_GetType () const

USD_API UsdAttribute _CreateAttr (TfToken const &attrName, SdfValueTypeName const &typeName, bool custom, SdfVariability variability, VtValue const &defaultValue, bool writeSparsely) const


Friends

class UsdSchemaRegistry


Detailed Description

Abstract base class that defines render settings that can be specified on either a RenderSettings prim or a RenderProduct prim.

For any described attribute Fallback Value or Allowed Values below that are text/tokens, the actual token is published and defined in UsdRenderTokens. So to set an attribute to the value "rightHanded", use UsdRenderTokens->rightHanded as the value.

Definition at line 64 of file settingsBase.h.

Constructor & Destructor Documentation

◆ UsdRenderSettingsBase() [1/2]

UsdRenderSettingsBase ( const UsdPrim prim = UsdPrim())
inlineexplicit

Construct a UsdRenderSettingsBase on UsdPrim prim .

Equivalent to UsdRenderSettingsBase::Get(prim.GetStage(), prim.GetPath()) for a valid prim, but will not immediately throw an error for an invalid prim

Definition at line 76 of file settingsBase.h.

◆ UsdRenderSettingsBase() [2/2]

UsdRenderSettingsBase ( const UsdSchemaBase schemaObj)
inlineexplicit

Construct a UsdRenderSettingsBase on the prim held by schemaObj .

Should be preferred over UsdRenderSettingsBase(schemaObj.GetPrim()), as it preserves SchemaBase state.

Definition at line 84 of file settingsBase.h.

◆ ~UsdRenderSettingsBase()

virtual USDRENDER_API ~UsdRenderSettingsBase ( )
virtual

Destructor.

Member Function Documentation

◆ _GetSchemaKind()

USDRENDER_API UsdSchemaKind _GetSchemaKind ( ) const
overrideprotectedvirtual

Returns the kind of schema this class belongs to.

See also
UsdSchemaKind

Reimplemented from UsdTyped.

◆ CreateAspectRatioConformPolicyAttr()

USDRENDER_API UsdAttribute CreateAspectRatioConformPolicyAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetAspectRatioConformPolicyAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateCameraRel()

USDRENDER_API UsdRelationship CreateCameraRel ( ) const

See GetCameraRel(), and also Create vs Get Property Methods for when to use Get vs Create.

◆ CreateDataWindowNDCAttr()

USDRENDER_API UsdAttribute CreateDataWindowNDCAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDataWindowNDCAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateDisableDepthOfFieldAttr()

USDRENDER_API UsdAttribute CreateDisableDepthOfFieldAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDisableDepthOfFieldAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateDisableMotionBlurAttr()

USDRENDER_API UsdAttribute CreateDisableMotionBlurAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetDisableMotionBlurAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateInstantaneousShutterAttr()

USDRENDER_API UsdAttribute CreateInstantaneousShutterAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetInstantaneousShutterAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreatePixelAspectRatioAttr()

USDRENDER_API UsdAttribute CreatePixelAspectRatioAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetPixelAspectRatioAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ CreateResolutionAttr()

USDRENDER_API UsdAttribute CreateResolutionAttr ( VtValue const &  defaultValue = VtValue(),
bool  writeSparsely = false
) const

See GetResolutionAttr(), and also Create vs Get Property Methods for when to use Get vs Create.

If specified, author defaultValue as the attribute's default, sparsely (when it makes sense to do so) if writeSparsely is true - the default for writeSparsely is false.

◆ Get()

static USDRENDER_API UsdRenderSettingsBase Get ( const UsdStagePtr &  stage,
const SdfPath path
)
static

Return a UsdRenderSettingsBase holding the prim adhering to this schema at path on stage.

If no prim exists at path on stage, or if the prim at that path does not adhere to this schema, return an invalid schema object. This is shorthand for the following:

UsdRenderSettingsBase(stage->GetPrimAtPath(path));
Abstract base class that defines render settings that can be specified on either a RenderSettings pri...
Definition: settingsBase.h:65

◆ GetAspectRatioConformPolicyAttr()

USDRENDER_API UsdAttribute GetAspectRatioConformPolicyAttr ( ) const

Indicates the policy to use to resolve an aspect ratio mismatch between the camera aperture and image settings.

This policy allows a standard render setting to do something reasonable given varying camera inputs.

The camera aperture aspect ratio is determined by the aperture atributes on the UsdGeomCamera.

The image aspect ratio is determined by the resolution and pixelAspectRatio attributes in the render settings.

  • "expandAperture": if necessary, expand the aperture to fit the image, exposing additional scene content
  • "cropAperture": if necessary, crop the aperture to fit the image, cropping scene content
  • "adjustApertureWidth": if necessary, adjust aperture width to make its aspect ratio match the image
  • "adjustApertureHeight": if necessary, adjust aperture height to make its aspect ratio match the image
  • "adjustPixelAspectRatio": compute pixelAspectRatio to make the image exactly cover the aperture; disregards existing attribute value of pixelAspectRatio
Declaration uniform token aspectRatioConformPolicy = "expandAperture"
C++ Type TfToken
Usd Type SdfValueTypeNames->Token
Variability SdfVariabilityUniform
Allowed Values expandAperture, cropAperture, adjustApertureWidth, adjustApertureHeight, adjustPixelAspectRatio

◆ GetCameraRel()

USDRENDER_API UsdRelationship GetCameraRel ( ) const

The camera relationship specifies the primary camera to use in a render.

It must target a UsdGeomCamera.

◆ GetDataWindowNDCAttr()

USDRENDER_API UsdAttribute GetDataWindowNDCAttr ( ) const

dataWindowNDC specifies the axis-aligned rectangular region in the adjusted aperture window within which the renderer should produce data.

It is specified as (xmin, ymin, xmax, ymax) in normalized device coordinates, where the range 0 to 1 corresponds to the aperture. (0,0) corresponds to the bottom-left corner and (1,1) corresponds to the upper-right corner.

Specifying a window outside the unit square will produce overscan data. Specifying a window that does not cover the unit square will produce a cropped render.

A pixel is included in the rendered result if the pixel center is contained by the data window. This is consistent with standard rules used by polygon rasterization engines. UsdRenderRasterization

The data window is expressed in NDC so that cropping and overscan may be resolution independent. In interactive workflows, incremental cropping and resolution adjustment may be intermixed to isolate and examine parts of the scene. In compositing workflows, overscan may be used to support image post-processing kernels, and reduced-resolution proxy renders may be used for faster iteration.

The dataWindow:ndc coordinate system references the aperture after any adjustments required by aspectRatioConformPolicy.

Declaration uniform float4 dataWindowNDC = (0, 0, 1, 1)
C++ Type GfVec4f
Usd Type SdfValueTypeNames->Float4
Variability SdfVariabilityUniform

◆ GetDisableDepthOfFieldAttr()

USDRENDER_API UsdAttribute GetDisableDepthOfFieldAttr ( ) const

Disable all depth of field by setting F-stop of the targeted camera to infinity.

Declaration uniform bool disableDepthOfField = 0
C++ Type bool
Usd Type SdfValueTypeNames->Bool
Variability SdfVariabilityUniform

◆ GetDisableMotionBlurAttr()

USDRENDER_API UsdAttribute GetDisableMotionBlurAttr ( ) const

Disable all motion blur by setting the shutter interval of the targeted camera to [0,0] - that is, take only one sample, namely at the current time code.

Declaration uniform bool disableMotionBlur = 0
C++ Type bool
Usd Type SdfValueTypeNames->Bool
Variability SdfVariabilityUniform

◆ GetInstantaneousShutterAttr()

USDRENDER_API UsdAttribute GetInstantaneousShutterAttr ( ) const

Deprecated - use disableMotionBlur instead.

Override the targeted camera's shutterClose to be equal to the value of its shutterOpen, to produce a zero-width shutter interval. This gives us a convenient way to disable motion blur.

Declaration uniform bool instantaneousShutter = 0
C++ Type bool
Usd Type SdfValueTypeNames->Bool
Variability SdfVariabilityUniform

◆ GetPixelAspectRatioAttr()

USDRENDER_API UsdAttribute GetPixelAspectRatioAttr ( ) const

The aspect ratio (width/height) of image pixels.

The default ratio 1.0 indicates square pixels.

Declaration uniform float pixelAspectRatio = 1
C++ Type float
Usd Type SdfValueTypeNames->Float
Variability SdfVariabilityUniform

◆ GetResolutionAttr()

USDRENDER_API UsdAttribute GetResolutionAttr ( ) const

The image pixel resolution, corresponding to the camera's screen window.

Declaration uniform int2 resolution = (2048, 1080)
C++ Type GfVec2i
Usd Type SdfValueTypeNames->Int2
Variability SdfVariabilityUniform

◆ GetSchemaAttributeNames()

static USDRENDER_API const TfTokenVector & GetSchemaAttributeNames ( bool  includeInherited = true)
static

Return a vector of names of all pre-declared attributes for this schema class and all its ancestor classes.

Does not include attributes that may be authored by custom/extended methods of the schemas involved.

Friends And Related Function Documentation

◆ UsdSchemaRegistry

friend class UsdSchemaRegistry
friend

Definition at line 123 of file settingsBase.h.

Member Data Documentation

◆ schemaKind

const UsdSchemaKind schemaKind = UsdSchemaKind::AbstractTyped
static

Compile time constant representing what kind of schema this class is.

See also
UsdSchemaKind

Definition at line 70 of file settingsBase.h.


The documentation for this class was generated from the following file:
