Sphere

The Sphere schema represents a spherical primitive centered at the origin. It’s one of the intrinsic geometric primitives in UsdGeom, useful creating spherical shapes, defining volumes for lighting effects, setting up colliders for physics simulations, or using as bounds or proxies for more complex geometry. See Working with Primitives and Meshes for other use cases for spheres and other intrinsic primitives.

Basic Sphere Example

In the following example, a sphere with no authored radius or transform has a fallback radius of 1.0, and is centered at the origin.

#usda 1.0

def Sphere "BasicSphere"
{
}

Note

A Sphere prim represents a mathematically perfect sphere, but may not be rendered as such in 3D applications. For example, in :ref:usdview <toolset:usdview> using the Storm renderer, the sphere’s level of detail is controlled by Display -> Complexity in the viewport menu.

../../../_images/basic_sphere.png

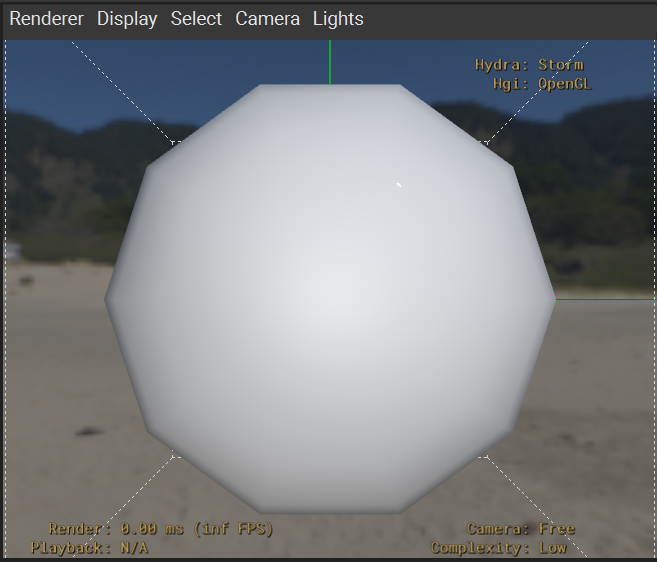

Sphere rendered with low complexity.

../../../_images/basic_sphere_high.png

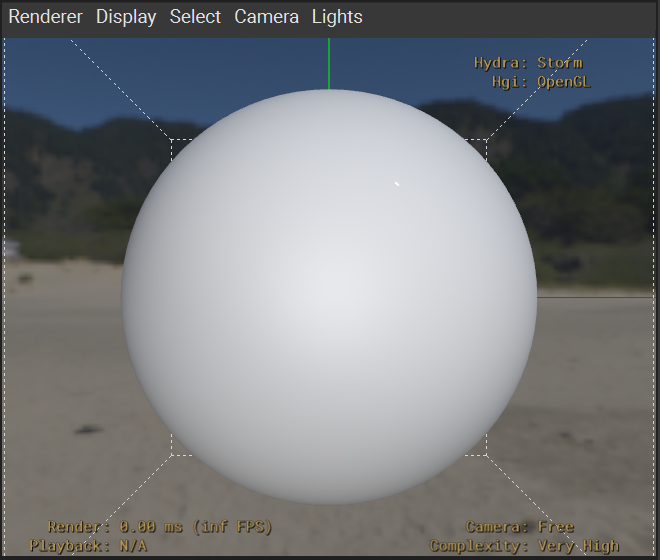

Sphere rendered with high complexity.

Sphere inherits from Xformable and therefore carries its own transform directly (without needing a separate parent “transform node”) and can be transformed using Xformable xformOps. See Transforming Geometry for more details and examples.

Sphere inherits from Imageable and therefore can use imageable purpose to specify the underlying purpose for why the Sphere is being rendered (e.g. as
guide or proxy geometry). See imageable purpose for more details and examples.

Properties

radius

USD type: double

Fallback value: 1.0

The radius of the sphere in stage linear units. This determines the size of the sphere, with the sphere being centered at the origin. A radius of 1.0 creates a sphere with a diameter of 2.0 units. Note that if you author radius you must also author extent.

Best practices:

  • Keep radius values positive

  • Consider the scale of your scene when setting radius

  • Remember that radius is in the same units as your stage

Inherited Properties (Gprim)

doubleSided

USD type: bool

Fallback value: False

The doubleSided attribute controls whether the Gprim should be rendered from both sides. When false (default), renderers can perform backface culling optimizations. When true, the surface should be visible from both sides, which is useful for thin objects like paper, cloth, or leaves.

Note

Not all renderers support double-sided rendering.

orientation

USD type: token

Fallback value: rightHanded

Orientation specifies whether the Gprim’s surface normal should be computed using the right hand rule or left hand rule. This affects how surface normals are calculated and can impact lighting and culling behavior.

Allowed values:

  • “rightHanded” (the fallback value): Use right-hand rule for normal computation

  • “leftHanded”: Use left-hand rule for normal computation

Note

Transforms with odd numbers of negative scales can flip the effective orientation.

primvars:displayColor

USD type: color3f[]

displayColor provides an “official” color set that can be used for display or modeling purposes. This is used by shaders that specifically look for a displayColor primvar.

When used with Hydra, displayColor is typically used for viewport visualization and can serve as a fallback when no material is assigned.

See the Primvars user guide for more details on primvars.

primvars:displayOpacity

USD type: float[]

displayOpacity is the companion to displayColor that specifies opacity as an independent attribute rather than an RGBA color. This allows each to be independently overridden and is more compatible with shaders that rarely consume RGBA parameters. Like displayColor, displayOpacity is a primvar, and can be used as an override for a shader that consumes a displayOpacity primvar.

Use this for viewport visualization and as a fallback when no material is assigned.

See the Primvars user guide for more details on primvars.

Inherited Properties (Boundable)

extent

USD type: float3[]

Fallback value: [(-1, -1, -1), (1, 1, 1)]

The extent attribute defines a bounding box for the prim in its local coordinate space. It consists of two points: the minimum corner and maximum corner of the bounding box.

The extent is stored as an array of two float3 values:

  • First element: minimum corner (xmin, ymin, zmin)

  • Second element: maximum corner (xmax, ymax, zmax)

For animated geometry, the extent should be authored using animated values (timeSamples or splines) to capture the changing bounds over time. This allows renderers to efficiently cull geometry without having to compute the bounds at runtime.

Example:

float3[] extent = [(-1, -1, -1), (1, 1, 1)]  # Unit cube

Inherited Properties (Xformable)

xformOpOrder

USD type: token[]

The xformOpOrder attribute contains the names of transform operation attributes in the precise sequence they should be applied. This ensures transforms are evaluated in the correct order.

Special tokens:

  • “!resetXformStack!”: Indicates this prim should not inherit parent transforms. Can introduce uncertainty for some scene processing algorithms.

  • “!invert!”: Indicates an inverted operation (e.g., for pivot points). Automatically resolves to the negated value of its “paired op” (indicated in opName). See Xformable for an example using the invert op.

Inherited Properties (Imageable)

proxyPrim

USD type: rel (relationship)

The proxyPrim relationship allows linking a prim whose purpose is “render” to its (single target) purpose="proxy" prim. This is useful for providing a less complex proxy geometry representation of a prim optimized for interactive renders.

Typically you would author proxyPrim for prims whose purpose is “render”, although this is not required for render and proxy prims to draw properly in the appropriate circumstances. Rather, it is for users and DCC’s to reason more easily about the different representations.

See also Using Purpose for Stand-in Data.

purpose

USD type: token

Fallback value: default

Purpose classifies geometry into categories that can each be independently included or excluded from different operations, such as rendering or bounding-box computation.

Allowed values:

  • “default”: No special purpose, included in all traversals. This is the fallback value if a purpose has not been authored.

  • “render”: For final quality renders.

  • “proxy”: For lightweight interactive renders. For example, the prim might be a lower-complexity representation of a mesh for rendering in a DCC tool.

  • “guide”: For helper/visualization geometry. For example, the prim might be a spline used as a visual aid in a rigging tool.

Purpose is inherited down the scene namespace. If a prim is not imageable or does not have an authored opinion about its own purpose, then it will inherit the purpose of the closest imageable ancestor with an authored purpose opinion (or use the fallback purpose if no ancestor has an authored purpose).

See also Using Imageable Purpose.

visibility

USD type: token

Fallback value: inherited

Visibility is the simplest way to control whether geometry is shown or hidden. It can be animated, allowing a sub-tree of geometry to appear and disappear over time. Unlike deactivating geometry, invisible geometry is still available for inspection, positioning, and computing against. Note that visibility is strongly inherited down the namespace, so child prims of a prim set as invisible cannot be switched to visible.

Allowed values:

  • “inherited” (the fallback value): Inherits visibility from parent prims

  • “invisible”: Hides the prim and all its children from rendering

See also Using the Visibility Attribute.
